주요 스펙 요약(15)
- Common Mode Rejection Ratio Cmrr
- 95dB
- Dual Supply
- -13V~-5V;5V~13V
- Gain Bandwidth Product
- 25MHz
- Ib Input Bias Current
- 10pA
- Input Offset Current Ios
- 1.5pA
- Input Offset Voltage Drift Vos Tc
- 0.8uV/℃
- Vos Input Offset Voltage
- 85uV
- Maximum Power Supply Range Vdd Vss
- 26V
- Noise Density E N
- 6nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 45mA

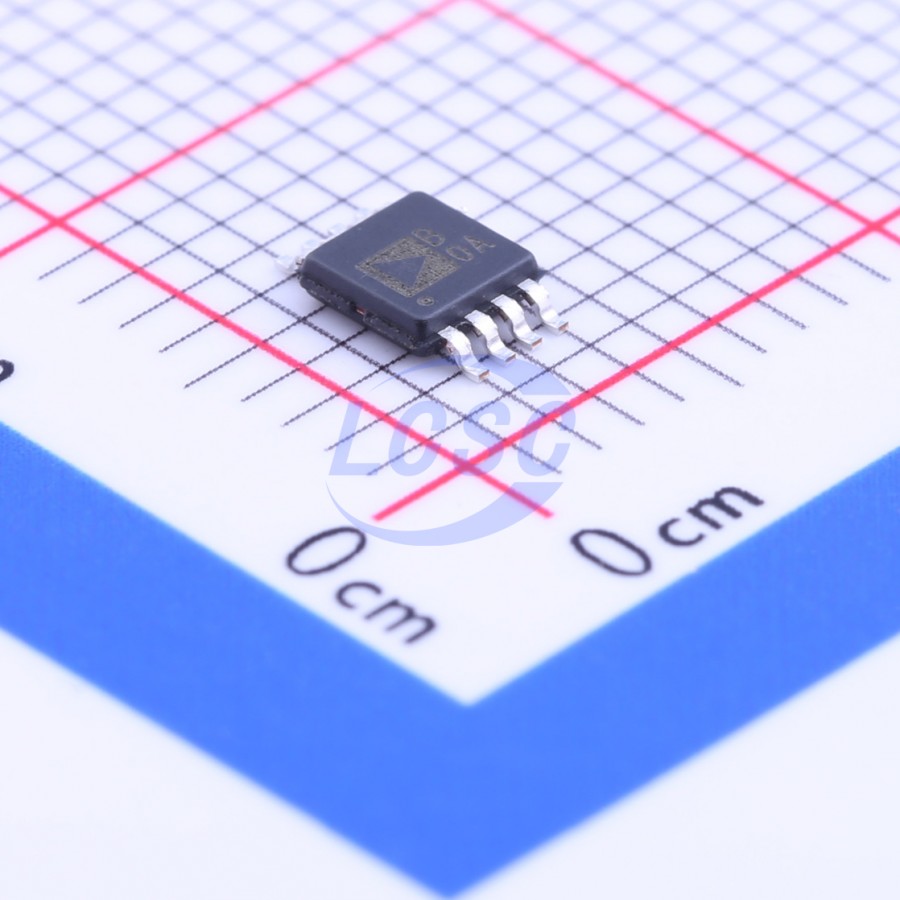

- package
- MSOP-8
- Quiescent Current
- 2.5mA
- Slew Rate
- 50V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-pin MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN | input | None |
| 2 | +IN | input | None |
| 3 | V- | power in | None |
| 4 | NC | no connect | None |
| 5 | V+ | power in | None |
| 6 | OUT | output | None |
| 7 | NULL | no connect | None |
| 8 | NULL | no connect | None |
절대 최대 정격
| Supply Voltage | 27.3V | |
| Input Voltage | ±Supply VoltageV | VS- to VS+ |
| Differential Input Voltage | ±Supply VoltageV | |
| Output Short to Ground | 300°C | duration |
| Storage Temperature | -65 to +150°C |
권장 동작 조건
| Supply Voltage | 5 to 13V | ±5 V to ±13 V |
| Operating Temperature | -40 to +125°C |
열 특성
- theta ja
- 190
- theta jc
- 44
오더링 코드
- R7
- Tape and Reel
