주요 스펙 요약(24)
- Common Mode Rejection Ratio Cmrr
- 95dB
- Dual Supply
- -2.5 to 2.5V
- Gain Bandwidth Product검증
- 400kHz
- Ib Input Bias Current
- 0.2pA
- Input Offset Current Ios
- 50pA
- Input Offset Voltage Drift Vos Tc
- 7uV/℃
- Maximum Power Supply Range Vdd Vss
- 5.5V
- Noise Density E N
- 22nV/√Hz@10kHz
- Number Of Channels검증
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 80mA
- Quiescent Current
- 38uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8 to 5.5V
- Slew Rate검증
- 100V/ms
- Vos Input Offset Voltage
- 2.2mV
- Common Mode Rejection Ratio보강
- 95dB
- Input Bias Current보강
- 1pA
- Input Offset Voltage Vos보강
- 2.2mV
- Max Supply Voltage보강
- 6V
- Number Of Circuits보강
- 1
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package

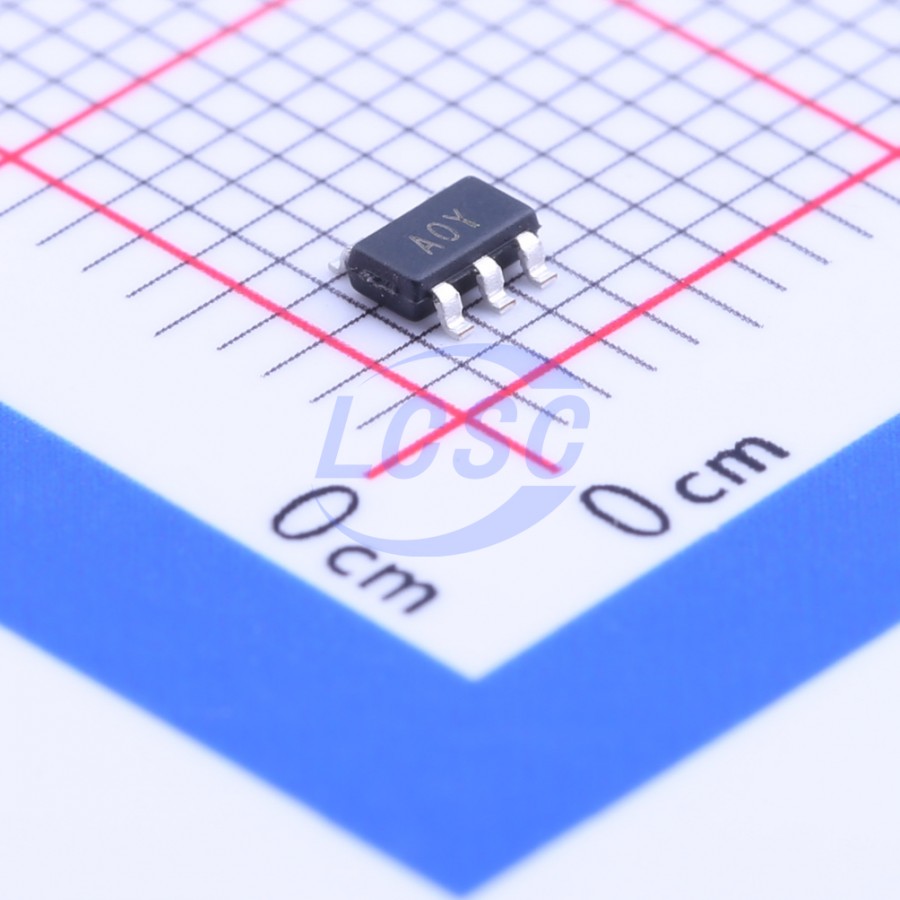

- TSOT-23-5
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 5-Lead TSOT-23 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT | output | Output A |
| 2 | -IN | input | -IN A |
| 3 | +IN | input | +IN A |
| 4 | V- | power in | V- |
| 5 | V+ | power in | V+ |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | -0.3 to VDD + 0.3V | |
| Input Current | 10mA | |
| Differential Input Voltage | 6V |
권장 동작 조건
| Supply Voltage | 1.8 to 5.5V | |
| Operating Temperature Range | -40 to 125°C |
열 특성
- unit
- °C/W
- theta ja
- 207
- theta jc
- 61
등급 · 신뢰성
- aec q
- AD8617W and AD8619W are qualified for automotive applications
- esd hbm
- 4000
오더링 코드
- REEL7
- Tape and Reel
