주요 스펙 요약(18)
- Common Mode Rejection Ratio Cmrr
- 100dB
- Dual Supply
- -2.5V~-900mV;900mV~2.5V
- Gain Bandwidth Product
- 400kHz
- Ib Input Bias Current
- 1pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 50pA
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Vos Input Offset Voltage
- 50uV
- Maximum Power Supply Range Vdd Vss
- 5V
- Number Of Channels
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 70mA
- Quiescent Current
- 40uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8 to 5V
- Slew Rate
- 100V/ms
- Noise Density E N
- 22nV/√Hz@10kHz

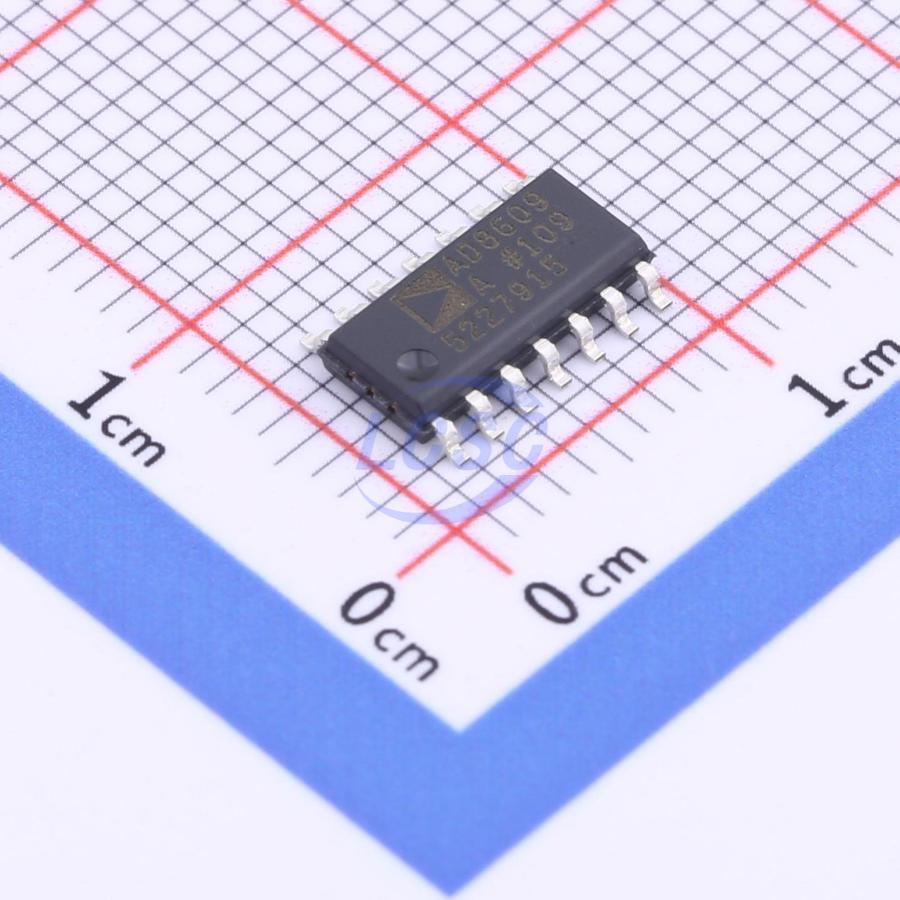

- package
- SOIC-14
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-pin SOIC · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | None |
| 2 | -IN A | input | None |
| 3 | +IN A | input | None |
| 4 | V+ | power in | None |
| 5 | OUT B | output | None |
| 6 | -IN B | input | None |
| 7 | +IN B | input | None |
| 8 | OUT C | output | None |
| 9 | -IN C | input | None |
| 10 | +IN C | input | None |
| 11 | V- | power in | None |
| 12 | +IN D | input | None |
| 13 | -IN D | input | None |
| 14 | OUT D | output | None |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | 6V | GND to VS |
| Differential Input Voltage | 6V |
권장 동작 조건
| Supply Voltage | 1.8V | Single Supply |
| Supply Voltage | 5V | Single Supply |
| Supply Voltage | 0.9V | Dual Supply |
| Supply Voltage | 2.5V | Dual Supply |
| Operating Temperature | -40°C | |
| Operating Temperature | 125°C |
열 특성
- theta ja
- 120
- theta jc
- 36
오더링 코드
- REEL7
- Tape and Reel 7 inch
