주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr
- 93dB
- Gain Bandwidth Product검증
- 2.3GHz
- Ib Input Bias Current
- 500nA
- Input Offset Current Drift Ios Tc
- 0.1uA/℃
- Input Offset Voltage Drift Vos Tc
- 1.5uV/℃
- Vos Input Offset Voltage보강
- 0.3mV
- Maximum Power Supply Range Vdd Vss
- 10V
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+105℃
- Output Current
- 50mA
- Output Type
- Differential
- Power Supply Rejection Ratio Psrr
- 89dB
- Quiescent Current
- 20mA
- Settling Time
- 10ns
- Single Supply
- 4.5 to 11V
- Slew Rate검증
- 5000V/us
- Dual Supply
- -5 to 5V
- Input Bias Current보강
- 5mA
- Input Offset Current Ios
- 0.6uA
- Noise Density E N
- 1.4nV/√Hz@100kHz
- Operating Temperature Max보강
- 105°C
- Operating Temperature Min보강
- -40°C

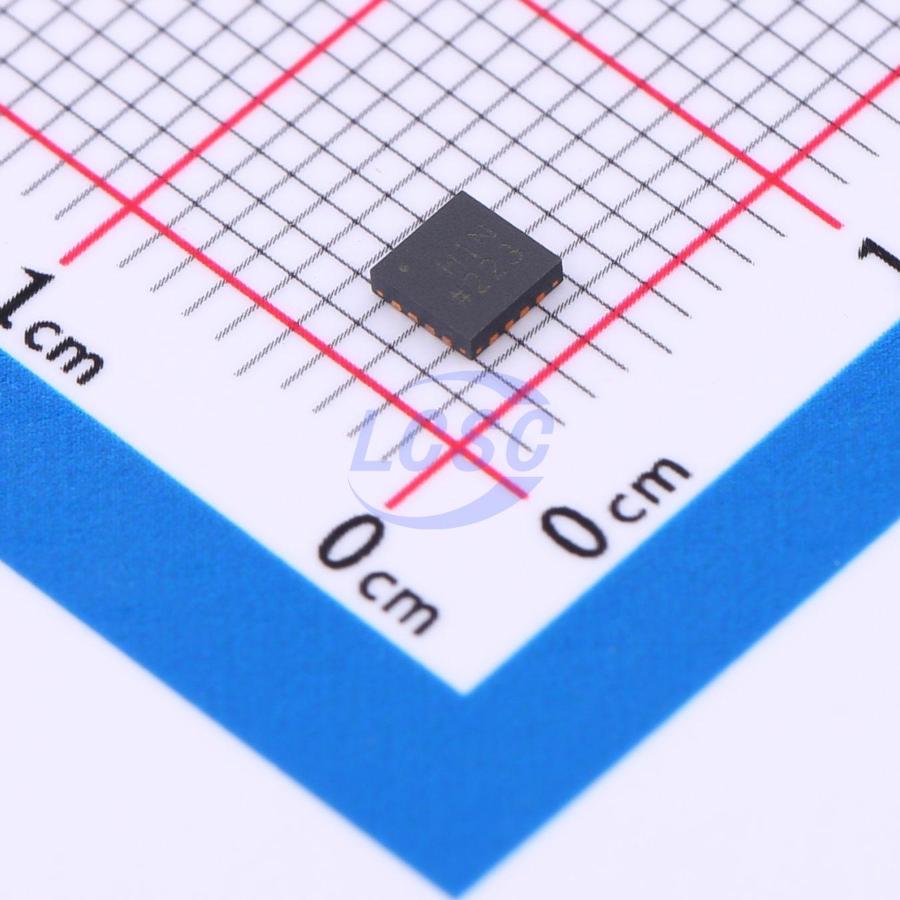

- package
- LFCSP-16(3x3)
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 16-Lead LFCSP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -FB | output | Negative Output for Feedback Component Connection |
| 2 | +IN | input | Positive Input Summing Node |
| 3 | -IN | input | Negative Input Summing Node |
| 4 | +FB | output | Positive Output for Feedback Component Connection |
| 5 | +VS | power in | Positive Supply Voltage |
| 6 | +VS | power in | Positive Supply Voltage |
| 7 | +VS | power in | Positive Supply Voltage |
| 8 | +VS | power in | Positive Supply Voltage |
| 9 | VOCM | output | Output Common-Mode Voltage |
| 10 | +OUT | output | Positive Output for Load Connection |
| 11 | -OUT | output | Negative Output for Load Connection |
| 12 | PD | other | Power-Down Pin |
| 13 | -VS | power in | Negative Supply Voltage |
| 14 | -VS | power in | Negative Supply Voltage |
| 15 | -VS | power in | Negative Supply Voltage |
| 16 | -VS | power in | Negative Supply Voltage |
절대 최대 정격
| Supply Voltage | 11V | |
| Input Currents | 5mA | +IN, -IN, PD |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 105°C | |
| Supply Voltage | 5 to 5V | +5 V to ±5 V |
열 특성
- theta ja
- 87
오더링 코드
- R7
- 1,500 quantity
