주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr
- 126dB
- features
- -
- Gain Bandwidth Product검증
- 65MHz
- Ib Input Bias Current
- 100nA
- Input Offset Current Drift Ios Tc
- 2nA/℃
- Input Offset Current Ios
- 30nA
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Vos Input Offset Voltage보강
- 160μV
- Maximum Power Supply Range Vdd Vss
- 33V
- Number Of Channels검증
- 1
- Operating Temperature
- -40℃~+105℃
- Output Current
- 150mA
- Quiescent Current
- 8.7mA
- Rail To Rail
- -
- Single Supply
- -
- Slew Rate검증
- 55V/us
- Dual Supply
- -16.5V~-4.5V;4.5V~16.5V
- Input Bias Current보강
- 0.1μA
- Noise Density E N
- 900pV/√Hz@1kHz
- Operating Temperature Max보강
- 105°C
- Operating Temperature Min보강
- -40°C

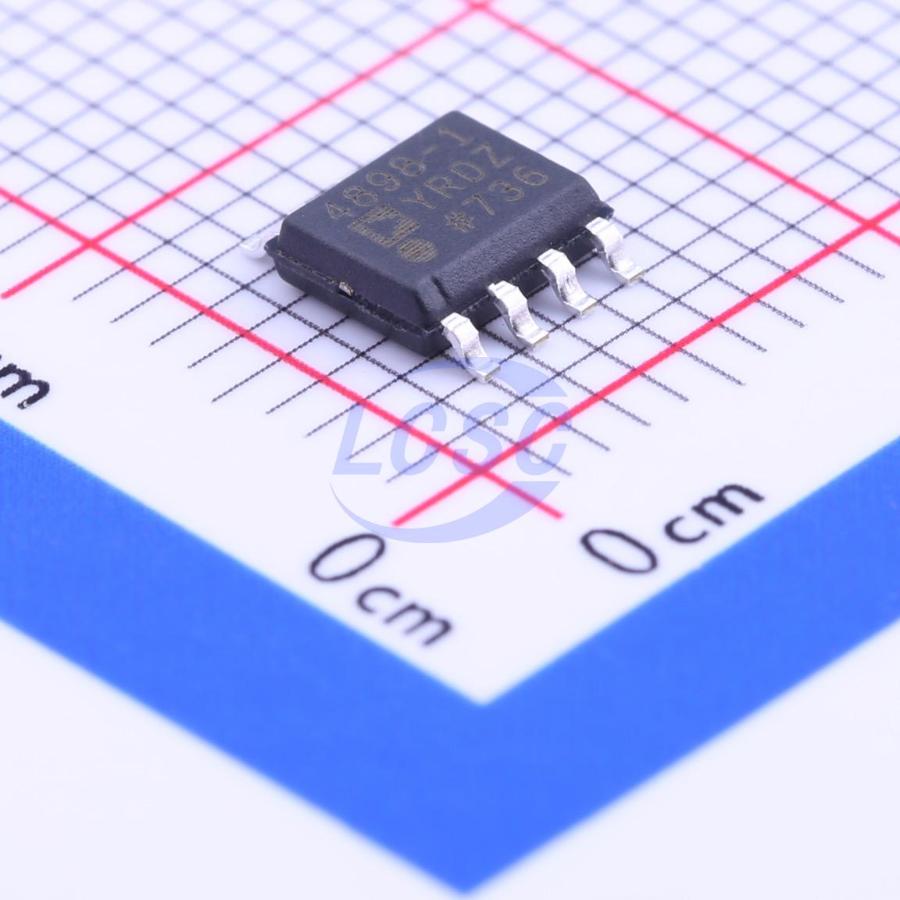

- package
- SOIC-8-EP
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOIC_N_EP (RD-8-1) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | –IN | input | Inverting Input |
| 2 | +IN | input | Non-inverting Input |
| 3 | –VS | power in | Negative Supply |
| 4 | PD | other | Power Down |
| 5 | NC | no connect | No Connect |
| 6 | NC | no connect | No Connect |
| 7 | VOUT | output | Output |
| 8 | +VS | power in | Positive Supply |
절대 최대 정격
| Supply Voltage | 36V | |
| Differential Input Voltage | 11.4V | |
| Common Mode Input Voltage | ±1.5V | |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage Range | 5 to 16V | ± |
| Operating Temperature Range | -40 to 105°C |
열 특성
- unit
- °C/W
- theta ja
- 47
- theta jc
- 29
오더링 코드
- R7
- 1,000 units
