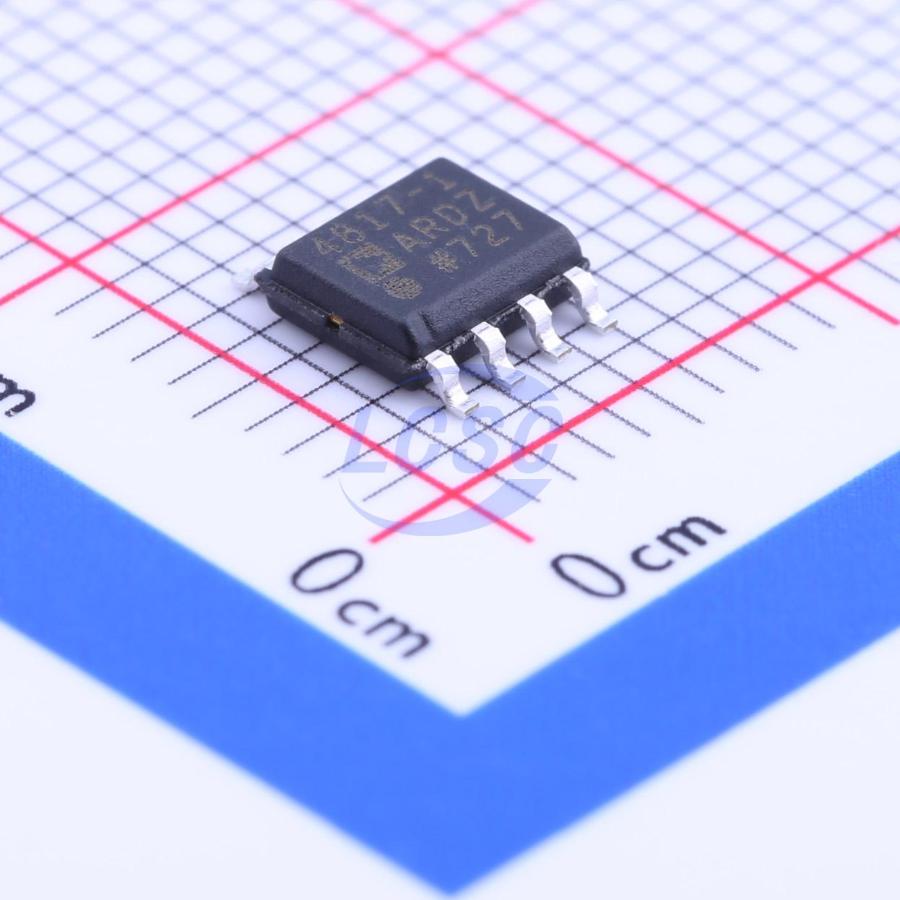

주요 스펙 요약(18)
- Common Mode Rejection Ratio Cmrr
- -83dB
- Dual Supply
- -5 to 5V
- Gain Bandwidth Product검증
- 1.05GHz
- Ib Input Bias Current
- 2pA
- Input Bias Current보강
- 2pA
- Input Offset Voltage Drift Vos Tc
- 7uV/℃
- Vos Input Offset Voltage보강
- 2mV
- Maximum Power Supply Range Vdd Vss
- 10V
- Noise Density E N
- 4nV/√Hz@100kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+105℃
- Output Current검증
- 40mA
- package
- SOIC-8-EP
- Quiescent Current
- 14mA
- Single Supply
- 5 to 10V
- Slew Rate검증
- 870V/us
- Operating Temperature Max보강
- 105°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP_VD · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | PD | other | Power Down |
| 2 | FB | input | Feedback |
| 3 | -IN | input | Inverting Input |
| 4 | +IN | input | Non-inverting Input |
| 5 | -VS | power in | Negative Supply |
| 6 | NC | no connect | No Connect |
| 7 | OUT | output | Output |
| 8 | +VS | power in | Positive Supply |
절대 최대 정격
| Supply Voltage | 10.6V | |
| Common-Mode Input Voltage | -VS - 0.5 to +VS + 0.5V | |
| Differential Input Voltage | ±VSV | |
| Operating Temperature | -40 to 105°C | |
| Storage Temperature | -65 to 125°C | |
| Pin Temperature (10s) | 300°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage | 5 to 10V | |
| Operating Temperature | -40 to 105°C |
열 특성
- theta ja
- 94
- theta jc
- 29
