주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr
- 110dB
- Dual Supply
- -5 to 5V
- Gain Bandwidth Product검증
- 180MHz
- Ib Input Bias Current
- 1uA
- Input Offset Current Drift Ios Tc
- 250pA/℃
- Input Offset Current Ios
- 150nA
- Input Offset Voltage Drift Vos Tc
- 3.7uV/℃
- Vos Input Offset Voltage보강
- 125μV
- Maximum Power Supply Range Vdd Vss
- 11V
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 80mA
- Quiescent Current
- 1mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 11V
- Slew Rate검증
- 225V/us
- Input Bias Current보강
- 100
- Max Supply Voltage보강
- 11V
- Noise Density E N
- 3.1nV/√Hz@100kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

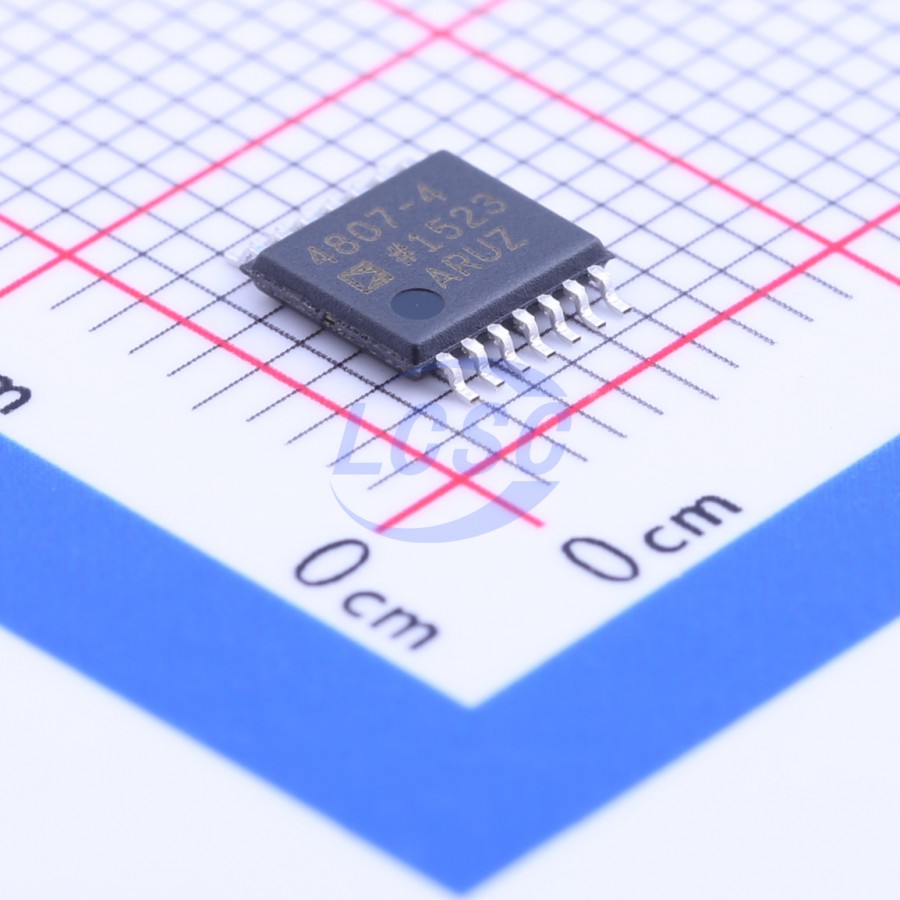

- package
- TSSOP-14
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Lead TSSOP · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VOUT1 | output | None |
| 2 | –IN1 | input | None |
| 3 | +IN1 | input | None |
| 4 | –VS | power in | None |
| 5 | DISABLE1 | input | None |
| 6 | +VS | power in | None |
| 7 | +IN2 | input | None |
| 8 | –IN2 | input | None |
| 9 | VOUT2 | output | None |
| 10 | +VS | power in | None |
| 11 | +IN4 | input | None |
| 12 | VOUT4 | output | None |
| 13 | –IN4 | input | None |
| 14 | –IN3 | input | None |
절대 최대 정격
| Supply Voltage | 11V | |
| Input Voltage (Common Mode) | ±VS ± 0.2V | |
| Differential Input Voltage | 1.4V | |
| Storage Temperature Range | -65 to +125°C | |
| Lead Temperature (Soldering 10 sec) | 300°C |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C |
열 특성
- theta ja
- 130
등급 · 신뢰성
- esd cdm
- 1.25
- esd hbm
- 3
오더링 코드
- R7
- 7-inch reel
