주요 스펙 요약(17)
- Common Mode Rejection Ratio Cmrr
- 95dB
- Dual Supply
- -15 to 15V
- Gain Bandwidth Product
- 800kHz
- Ib Input Bias Current
- 25nA
- Input Offset Current Ios
- 1.5nA
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Vos Input Offset Voltage
- 300uV
- Maximum Power Supply Range Vdd Vss
- 30V
- Noise Density E N
- 27nV/√Hz@1kHz
- Number Of Channels
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 10mA
- Quiescent Current
- 60uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 3 to 30V
- Slew Rate
- 400V/ms

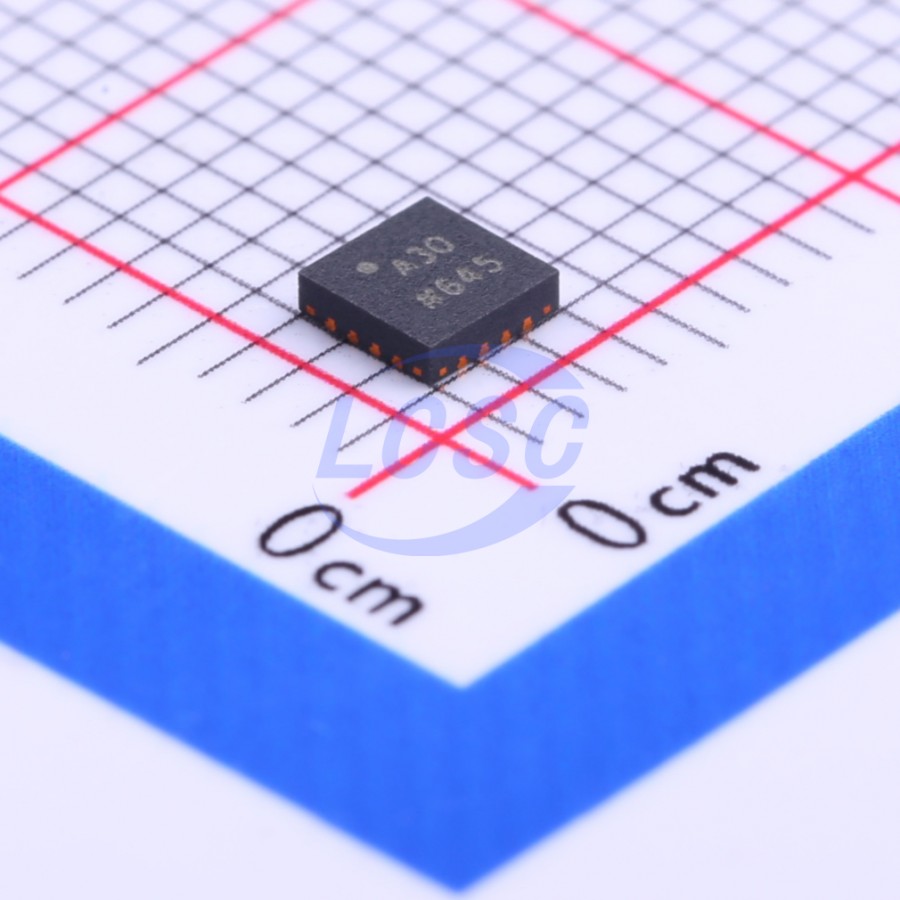

- package
- LFCSP-16(3x3)
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)절대 최대 정격
| Supply Voltage | 36V | |
| Input Voltage | -V <= VIN <= +V | |
| Input Voltage | 32V | Overvoltage Condition (-V - 32V <= VIN <= +V + 32V) |
| Differential Input Voltage | V | ±VSY |
| Input Current | 5mA | ±5 mA |
| Output Short-Circuit Duration to GND | Indefinite | |
| Storage Temperature Range | -65°C | |
| Storage Temperature Range | 150°C | |
| Operating Temperature Range | -40°C | |
| Operating Temperature Range | 125°C | |
| Junction Temperature Range | -65°C | |
| Junction Temperature Range | 150°C | |
| Lead Temperature (Soldering, 60 seconds) | 300°C |
권장 동작 조건
| Single-supply operation | 3V | |
| Single-supply operation | 30V |
열 특성
- theta ja
- 75
- theta jc
- 12
등급 · 신뢰성
- aec q
- W models qualified for automotive applications
오더링 코드
- R7
- Tape and Reel (7 inch)
- RL
- Tape and Reel (Large)
- Z
- RoHS Compliant
