주요 스펙 요약(19)
- Common Mode Rejection Ratio Cmrr보강
- 130dB
- Dual Supply
- -2.5V~-1.35V;1.35V~2.5V
- Gain Bandwidth Product
- 2.5MHz
- Ib Input Bias Current
- 30pA
- Input Offset Current Ios
- 50pA
- Input Offset Voltage Drift Vos Tc
- 2nV/℃
- Vos Input Offset Voltage보강
- 1μV
- Noise Density E N
- 22nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 30mA

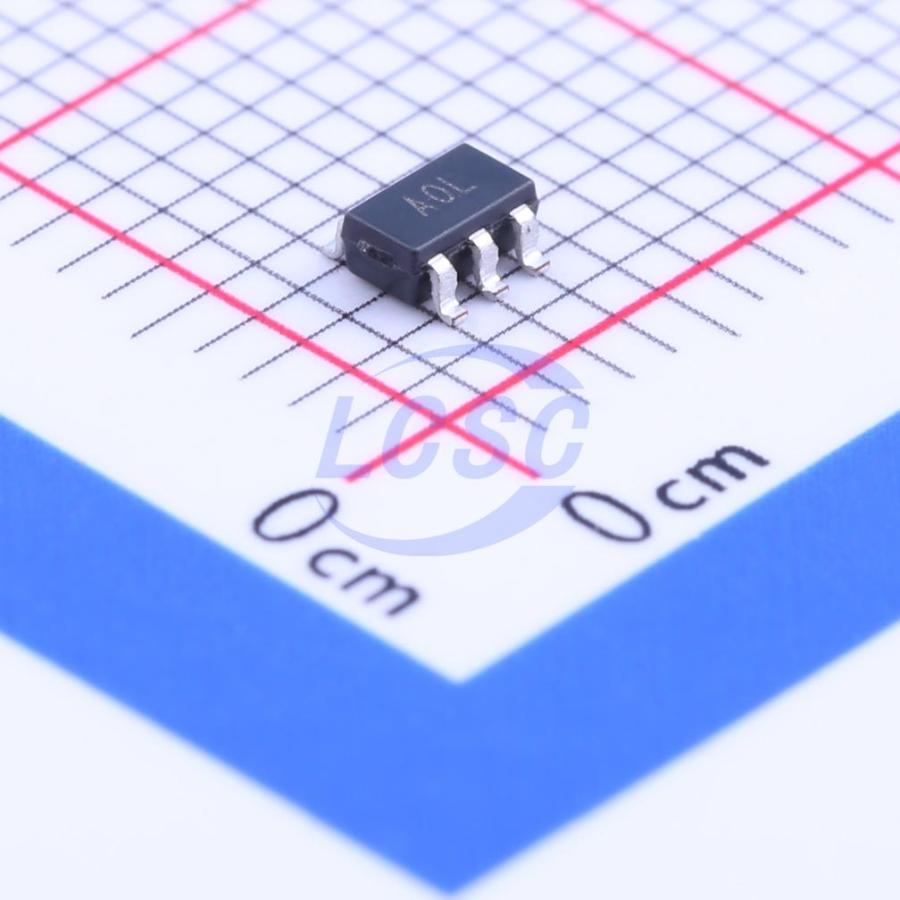

- package
- SOT-23-5
- Quiescent Current
- 1mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 5V
- Slew Rate
- 1V/us
- Input Bias Current보강
- 100pA
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSOT-5 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT | output | None |
| 2 | V- | power in | None |
| 3 | +IN | input | None |
| 4 | V+ | power in | None |
| 5 | -IN | input | None |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage | ±5V | |
| Storage Temperature | -65 to 150°C |
권장 동작 조건
| Supply Voltage | 2.7 to 5V | |
| Operating Temperature | -40 to 125°C |
열 특성
- unit
- °C/W
- theta ja
- 207
- theta jc
- 61
등급 · 신뢰성
- esd cdm
- ±1500V
- esd hbm
- ±7000V
오더링 코드
- R2
