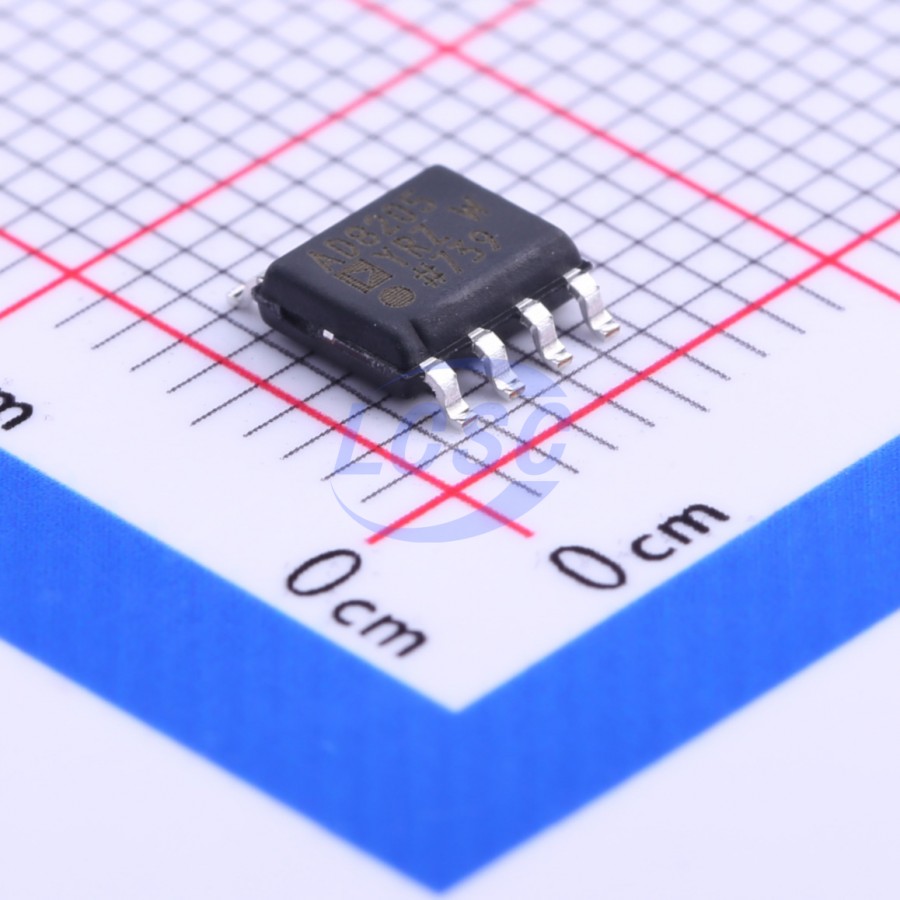

주요 스펙 요약(17)
- Common Mode Rejection Ratio Cmrr보강
- 80dB
- Gain Bandwidth Product
- 50kHz
- Ib Input Bias Current
- -
- Input Offset Voltage Drift Vos Tc
- 15uV/℃
- Vos Input Offset Voltage
- 2mV
- Maximum Power Supply Range Vdd Vss
- 5.5V
- Noise Density E N
- 0.5uV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-8
- Power Supply Rejection Ratio Psrr
- 70dB
- Quiescent Current
- 2mA
- Single Supply
- 4.5 to 5.5V
- Slew Rate
- 0.5V/us
- Voltage Gain보강
- 50V/V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead SOIC · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN | input | Negative input |
| 2 | GND | power in | Ground |
| 3 | VREF2 | input | Reference voltage 2 |
| 4 | NC | no connect | No connect |
| 5 | OUT | output | Output |
| 6 | V+ | power in | Positive supply |
| 7 | VREF1 | input | Reference voltage 1 |
| 8 | +IN | input | Positive input |
절대 최대 정격
| Supply Voltage | 12.5V | |
| Continuous Input Voltage | -25 to +75V | |
| Input Transient Survival | -30 to +80V | |
| Differential Input Survival | -25 to +75V | |
| Reverse Supply Voltage | 0.3V |
권장 동작 조건
| Operating Input Common-Mode Voltage Range | -2 to +65V |
등급 · 신뢰성
- aec q
- Qualified for automotive applications (W grade)
오더링 코드
- R7
- 7” Tape and Reel
- RL
- 13” Tape and Reel
- Z
- RoHS Compliant Part
- W
- Qualified for Automotive Applications
