주요 스펙 요약(13)
- Common Mode Rejection Ratio Cmrr
- 90dB
- Gain Bandwidth Product
- -
- Ib Input Bias Current
- -
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Vos Input Offset Voltage
- 100uV
- Noise Density E N
- 600nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- package

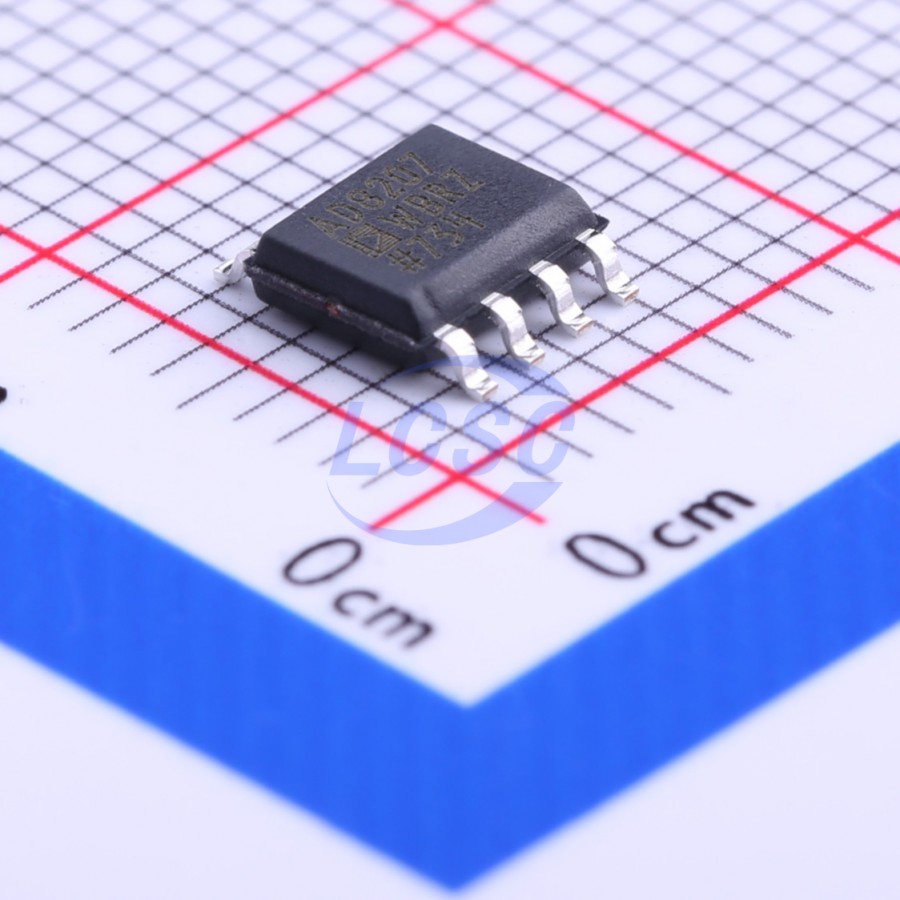

- SOIC-8
- Quiescent Current
- 2.5mA
- Rail To Rail
- -
- Single Supply
- 3.3 to 5.5V
- Slew Rate
- 1V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN | input | Negative Input |
| 2 | GND | power in | Ground Pin |
| 3 | VREF2 | input | Reference Input |
| 4 | RANGE | other | Range Pin. This pin switches between 4.5 V to 5.5 V and 3.3 V to 4.5 V supply operation. |
| 5 | OUT | output | Output |
| 6 | V+ | power in | Supply Pin |
| 7 | VREF1 | input | Reference Input |
| 8 | +IN | input | Positive Input |
절대 최대 정격
| Supply Voltage | 12.5V | |
| Continuous Input Voltage | -25 to +75V | |
| Input Transient Survival | -30 to +80V | |
| Differential Input Voltage | -25 to +75V | |
| Reverse Supply Voltage | 0.3V | |
| Operating Temperature Range | -40 to +125°C | |
| Storage Temperature Range | -65 to +150°C |
권장 동작 조건
| Supply Voltage Range | 3.3 to 5.5V | |
| Operating Input Common-Mode Voltage Range | -4 to +65V | 5 V supply |
| Operating Input Common-Mode Voltage Range | -4 to +35V | 3.3 V supply |
등급 · 신뢰성
- aec q
- Qualified for automotive applications
오더링 코드
- -RL
- 13” Tape and Reel
- W
- Qualified for Automotive Applications
- Z
- RoHS Compliant Part
