Key Specs Summary(26)
Datasheet cross-check1 matched2 enriched
- Charging Emulation
- BC1.2, Apple
- Integrated Flash Media Reader
- No
- Mgmt I F
- I2C
- Multi Traktech
- No
- Op Voltage
- 3.3
- Per Port Switching
- Yes
- phyboost
- Yes
- Port Map
- Yes
- Port Swap
- Yes
- ports
- 4
- Rom I F
- SPI, I2C for OTP
- Smart Hub
- Yes
- Temperature Range C Max
- 85
- Temperature Range C Min
- -40
- True Speed
- No
- usbpdspec
- 0
- Data RateEnriched
- Hi-Speed
- dimensions
- 7x7x1.0mm
- msl
- MSL-3
- Number Of ChannelsEnriched
- 4

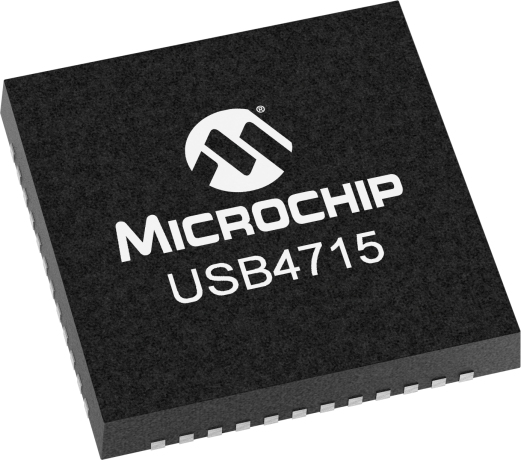

- packageVerified
- VQFN
- Pin Count
- 48
- Product Name
- USB4715
- Solder Composition
- Matte Tin
- Upstream Port
- USB 2.0
- Usb Speed
- Hi-Speed
