Key Specs Summary(28)
Datasheet cross-check2 enriched1 to review
- Battery Charger Detection
- Yes
- Charging Emulation
- No
- Crystal Support
- Yes
- gpios
- 0
- Host Based If
- No
- Integrated Usbswitch
- Yes
- iovoltage
- 1.8V-3.3V
- Mgmt I F
- No
- Temp Range Max
- 85
- Temp Range Min
- -40
- Op Voltage
- 3.3
- otg
- Yes
- Port Count
- USB
- Reference Clock Freq
- Multi
- Rom I F
- No
- security
- No
- Data RateEnriched
- Hi-Speed USB 2.0
- Dead Battery Current Limiting
- No
- dimensions
- 5x5x0.9mm
- Hi Speed Switch
- No
- msl
- MSL-3
- Number Of ChannelsEnriched
- 1
- packageReview

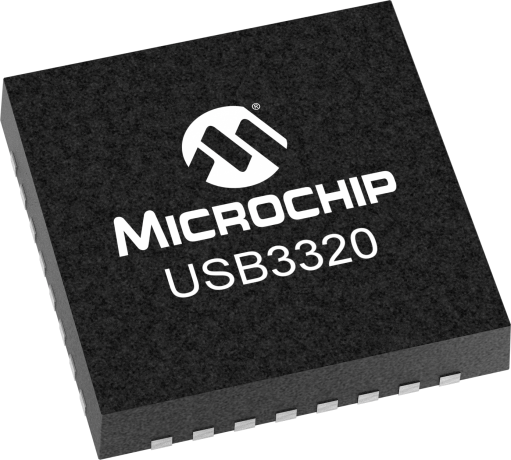

- VQFNDatasheet: 32-Lead QFN (5x5x0.85 mm) (p.1)
- Pin Count
- 32
- Solder Composition
- Matte Tin
- Ulpiinput Clock Mode
- Yes
- Upstream Port
- ULPI
- Usb Speed
- High Speed
