Key Specs Summary(28)
- Analog Supply Voltage Max
- 5.5
- Analog Supply Voltage Min
- 1.8
- Digital Supply Voltage Max
- 5.5
- Digital Supply Voltage Min
- 1.8
- Dnl Lsb Max
- 0.1
- Dnl Typ Lsb
- 0
- Idd Active Max
- 280
- Idd Active Typ
- 0
- Idd Standby
- 3.8
- Idd Standby Typ
- 0.56
- Inl Max Lsb
- 0.1
- Inl Typ Lsb
- 0
- interface
- SPI
- Memory Type
- Non-Volatile
- Number Of Input Channels
- 4
- Offset Error Max
- 6
- dimensions
- 4x4x0.9mm
- msl
- MSL-1
- Offset Error Typ
- 0.7
- Temp Max
- 125
- Temp Min
- -40
- Output Settling Time S
- 4
- Output Type
- Voltage(buffered)

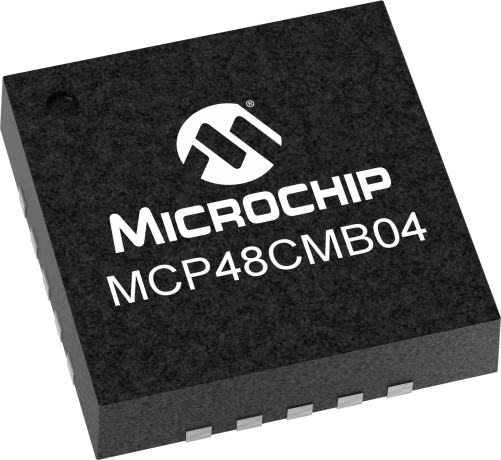

- package
- QFN
- Pin Count
- 20
- resolution
- 8
- Slew Rate
- 0.15
- Solder Composition
- MatteTin
