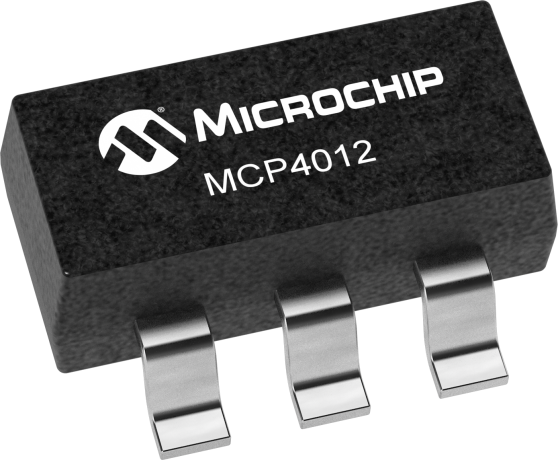

Key Specs Summary(30)
- Analog Supply Voltage Max
- 5.5
- Analog Supply Voltage Min
- 1.8
- comments
- HV tolerant digital inputs, Analog Specified from 2.7V, Can use MCP4XXXDM-DB to evaluate device capabilities
- Digital Supply Voltage Max
- 5.5
- Digital Supply Voltage Min
- 1.8
- Dnl Lsb Max
- 0.5
- Dnl Typ Lsb
- 0.25
- Idd Standby
- 1
- Idd Typ
- 45
- Inl Max Lsb
- 0.5
- Inl Typ Lsb
- 0.25
- interface
- Up/Down Protocol
- Memory Type
- Volatile
- Nominal Resistance Match
- 20
- Number Of Input Channels
- 1
- Of Steps
- 64
- msl
- MSL-1
- Temp Max
- 125
- Temp Min
- -40
- package
- SOT-23
- Pin Count
- 6
- rab
- 2.1, 5, 10, 50
- Rab T
- 10
- resolution
- 6
- Rw Max
- 70
- Solder Composition
- MatteTin
- Vdd Max
- 5.5
- Vdd Min
- 1.8
- Vwb T
- 50
- Wiper Configuration
- Rheostat
