주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr
- 80dB
- Dual Supply
- -18 to 18V
- Gain Bandwidth Product검증
- 5MHz
- Ib Input Bias Current
- 10pA
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Drift Vos Tc
- 9uV/℃
- Maximum Power Supply Range Vdd Vss
- 36V
- Noise Density E N
- 16nV/√Hz@1kHz
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 27mA
- Quiescent Current
- 1.2mA
- Rail To Rail
- -
- Single Supply
- 36V
- Slew Rate검증
- 20V/us
- Vos Input Offset Voltage
- 5.5mV
- Common Mode Rejection Ratio보강
- 80dB
- Input Bias Current보강
- 10pA
- Input Offset Voltage Vos보강
- 5.5mV
- Max Supply Voltage보강
- 36V
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

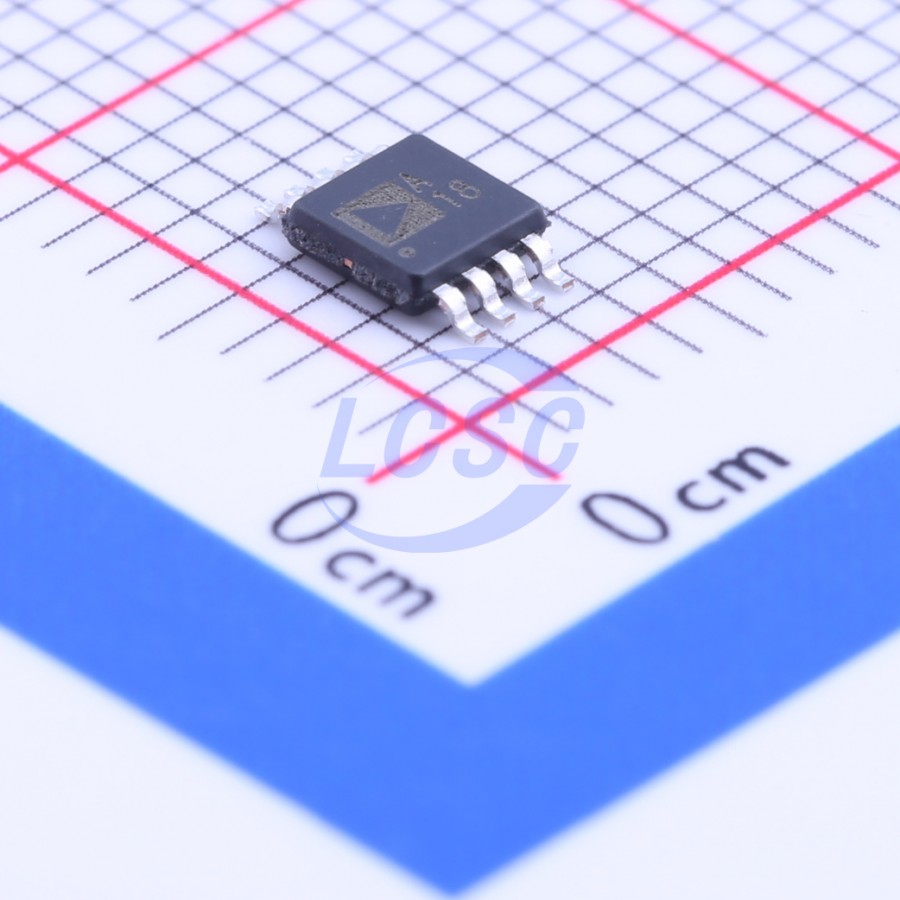

- package
- MSOP-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-pin SOIC_N (R-8) or MSOP (RM-8) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | None |
| 2 | –IN A | input | None |
| 3 | +IN A | input | None |
| 4 | –V | power in | None |
| 5 | +IN B | input | None |
| 6 | –IN B | input | None |
| 7 | OUT B | output | None |
| 8 | +V | power in | None |
절대 최대 정격
| Supply Voltage | 36V | single supply |
| Supply Voltage | 18V | dual supply ± |
| Input Voltage | ±V电源 | |
| Differential Input Voltage | ±V电源 | |
| Storage Temperature Range | -65 to +150°C | |
| Operating Temperature Range | -40 to +125°C | |
| Pin Temperature | 300°C | 60s soldering |
| Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage | 15V | ± |
열 특성
- theta ja
- 158 (R-8), 210 (RM-8), 120 (R-14), 180 (RU-14)
- theta jc
- 43 (R-8), 45 (RM-8), 36 (R-14), 35 (RU-14)
