주요 스펙 요약(18)
- Common Mode Rejection Ratio Cmrr
- 120dB
- Gain Bandwidth Product검증
- 230MHz
- Ib Input Bias Current
- 11uA
- Input Offset Current Ios
- 600nA
- Input Offset Voltage Drift Vos Tc
- 200nV/℃
- Vos Input Offset Voltage보강
- 0.5mV
- Max Supply Voltage보강
- 11V
- Noise Density E N
- 1nV/√Hz@100kHz
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 80mA

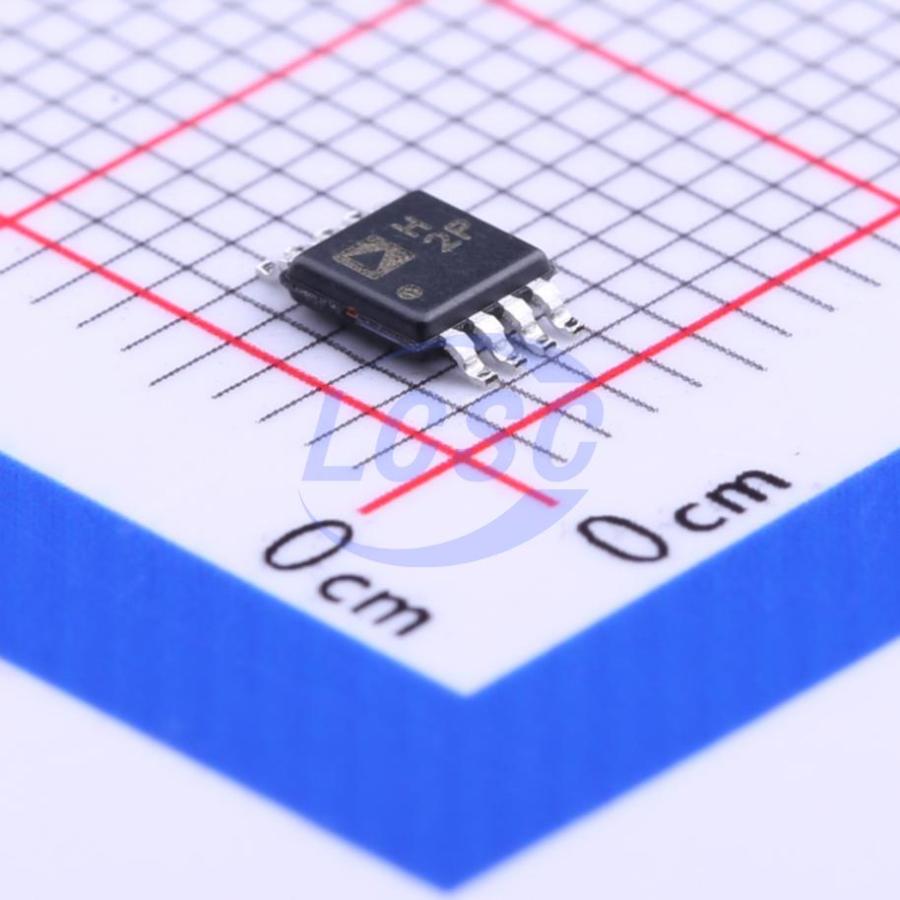

- package
- MSOP-8
- Quiescent Current
- 3mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 3 to 10V
- Slew Rate검증
- 120V/us
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT1 | output | Output 1 |
| 2 | -IN1 | input | Inverting Input 1 |
| 3 | +IN1 | input | Noninverting Input 1 |
| 4 | -VS | power in | Negative Supply |
| 5 | +IN2 | input | Noninverting Input 2 |
| 6 | -IN2 | input | Inverting Input 2 |
| 7 | OUT2 | output | Output 2 |
| 8 | +VS | power in | Positive Supply |
절대 최대 정격
| Supply Voltage | 11V | |
| Common-Mode Input Voltage | -VS - 0.7 to +VS + 0.7V | |
| Differential Input Voltage | 0.7V | ± |
| Storage Temperature Range | -65 to 125°C | |
| Operating Temperature Range | -40 to 125°C | |
| Lead Temperature | 300°C | 10 sec |
| Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage | 3 to 10V | |
| Operating Temperature | -40 to 125°C |
열 특성
- theta ja
- 222
등급 · 신뢰성
- esd cdm
- 1
- esd hbm
- 2.5
- unit cdm
- kV
- unit hbm
- kV
오더링 코드
- -R7
- 1,000
