주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr
- 115dB
- features
- -
- Gain Bandwidth Product검증
- 80MHz
- Ib Input Bias Current
- 3uA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 500nA
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Vos Input Offset Voltage보강
- 0.3mV
- Maximum Power Supply Range Vdd Vss
- 12V
- Number Of Channels검증
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 30mA
- Quiescent Current
- 1.1mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 2.7 to 12V
- Slew Rate검증
- 12V/us
- Dual Supply
- -
- Max Supply Voltage보강
- 12.6V
- Noise Density E N
- 2.1nV/√Hz@100kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package

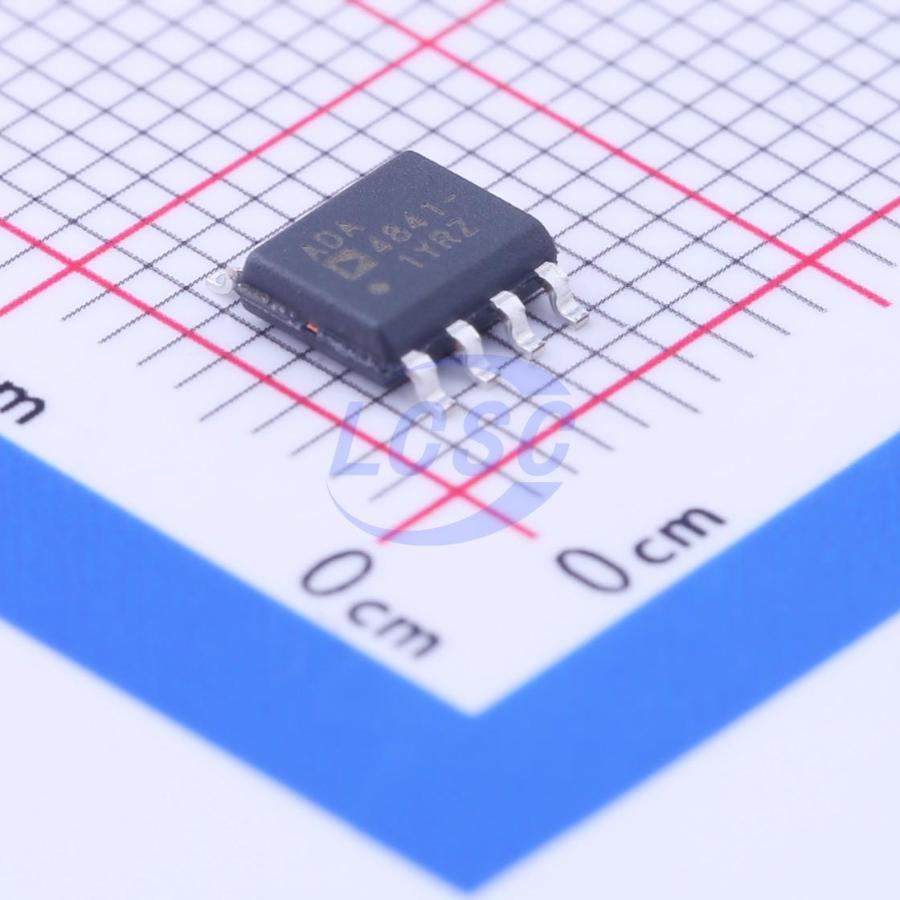

- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead SOIC_N · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT1 | output | Output 1 |
| 2 | -IN1 | input | Inverting Input 1 |
| 3 | +IN1 | input | Non-inverting Input 1 |
| 4 | -VS | power in | Negative Supply |
| 5 | +VS | power in | Positive Supply |
| 6 | NC | no connect | No Connection |
| 7 | NC | no connect | No Connection |
| 8 | POWER DOWN | input | Shutdown Control |
절대 최대 정격
| Supply Voltage | 12.6V | |
| Common-Mode Input Voltage | -VS - 0.5 to +VS + 0.5V | |
| Differential Input Voltage | 1.8V |
권장 동작 조건
| Supply Voltage Range | 2.7 to 12V | |
| Operating Temperature Range | -40 to 125°C |
열 특성
- theta ja
- 125
등급 · 신뢰성
- esd cdm
- 1
- esd hbm
- 2.5
오더링 코드
- R7
- 1,000 units
