주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr보강
- 75dB
- Dual Supply
- -8V~-2.5V;2.5V~8V
- Gain Bandwidth Product검증
- 1.2MHz
- Ib Input Bias Current
- 0.1pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 0.1pA
- Input Offset Voltage Drift Vos Tc
- 3uV/℃
- Vos Input Offset Voltage보강
- 4mV
- Maximum Power Supply Range Vdd Vss
- 16V
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current검증
- 30mA
- Quiescent Current
- 290uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 5 to 16V
- Slew Rate검증
- 1V/us
- Input Bias Current보강
- 1pA
- Max Supply Voltage보강
- 16.5V
- Noise Density E N
- 27nV/√Hz@10kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

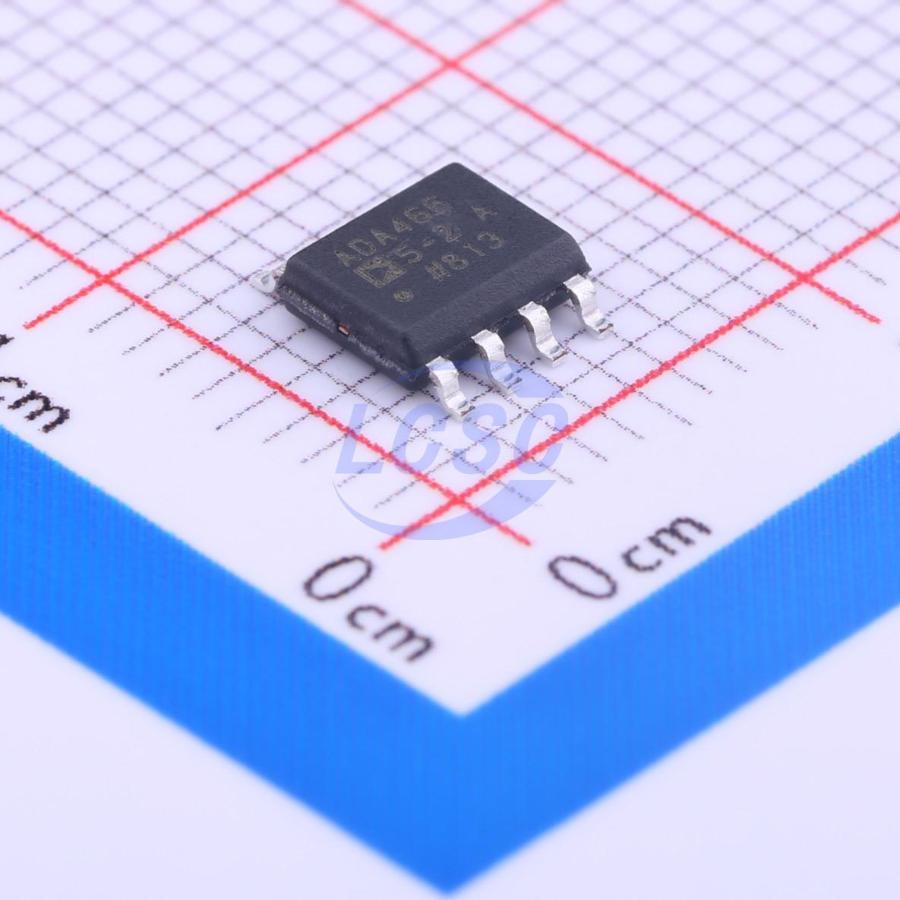

- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | None |
| 2 | –IN A | input | None |
| 3 | +IN A | input | None |
| 4 | V– | power in | None |
| 5 | +IN B | input | None |
| 6 | –IN B | input | None |
| 7 | OUT B | output | None |
| 8 | V+ | power in | None |
절대 최대 정격
| Supply Voltage | 16.5V | |
| Input Voltage | -0.3 to VSY + 0.3V | |
| Input Current | 10mA | |
| Differential Input Voltage | VSYV |
권장 동작 조건
| Operating Temperature Range | -40 to +125°C |
열 특성
- theta ja
- 158
- theta jc
- 43
오더링 코드
- R7
- Tape and Reel
