주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr
- 100dB
- features
- -
- Gain Bandwidth Product검증
- 8MHz
- Ib Input Bias Current
- 2pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 10pA
- Input Offset Voltage Drift Vos Tc
- 15uV/℃
- Vos Input Offset Voltage보강
- 0.8mV
- Maximum Power Supply Range Vdd Vss
- 30V
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 20mA
- Quiescent Current
- 700uA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 5 to 30V
- Slew Rate
- 23V/us
- Dual Supply
- -15 to 15V
- Input Bias Current보강
- 10pA
- Max Supply Voltage보강
- 30V
- Noise Density E N
- 12.5nV/√Hz@1kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

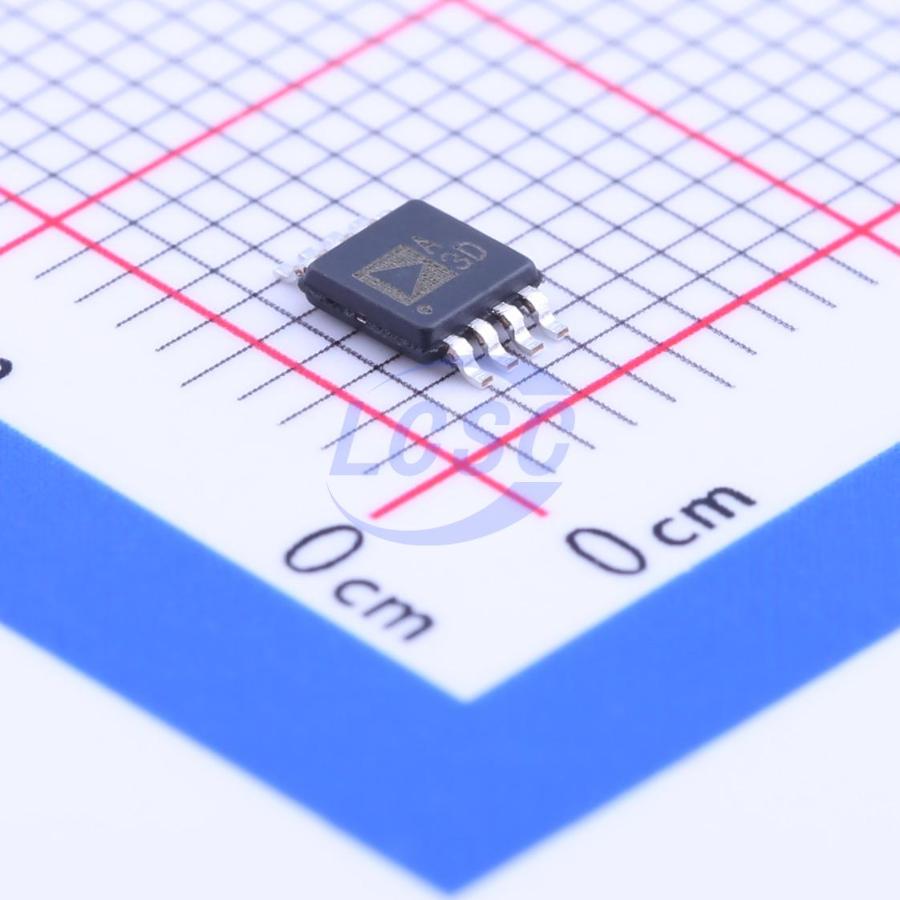

- package
- MSOP-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN A | input | None |
| 2 | +IN A | input | None |
| 3 | V- | power in | None |
| 4 | OUT A | output | None |
| 5 | OUT B | output | None |
| 6 | -IN B | input | None |
| 7 | +IN B | input | None |
| 8 | V+ | power in | None |
절대 최대 정격
| Supply Voltage | 36V | |
| Input Voltage (V-) | -0.3V | |
| Input Voltage (V+) | 0.2V | |
| Differential Input Voltage | 36V | |
| Storage Temperature Range | -65 to 150°C | |
| Operating Temperature Range | -40 to 125°C | |
| Junction Temperature Range | -65 to 150°C | |
| Lead Temperature, Soldering (10 sec) | 300°C | |
| ESD Rating, Human Body Model (HBM) | 4kV |
권장 동작 조건
| Supply Voltage | 5 to 30V |
열 특성
- theta ja
- 185
등급 · 신뢰성
- esd hbm
- 4 kV
오더링 코드
- R7
- 7-inch reel
