주요 스펙 요약(23)
- Common Mode Rejection Ratio Cmrr
- 155dB
- Dual Supply
- -27.5V~-2.25V;2.25V~27.5V
- features
- Zero drift/automatic zero stabilization;EMI filter/RF suppression;Built-in compensation
- Gain Bandwidth Product검증
- 2.7MHz
- Ib Input Bias Current
- 50pA
- Input Offset Current Ios
- 250pA
- Input Offset Voltage Drift Vos Tc
- 22nV/℃
- Noise Density E N
- 5.8nV/√Hz@1kHz
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 22mA
- Quiescent Current
- 900uA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 4.5 to 55V
- Slew Rate검증
- 1.4V/us
- Vos Input Offset Voltage
- 5uV
- Common Mode Rejection Ratio보강
- 155dB
- Input Bias Current보강
- 50pA
- Input Offset Voltage Vos보강
- 5μV
- Max Supply Voltage보강
- 55V
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

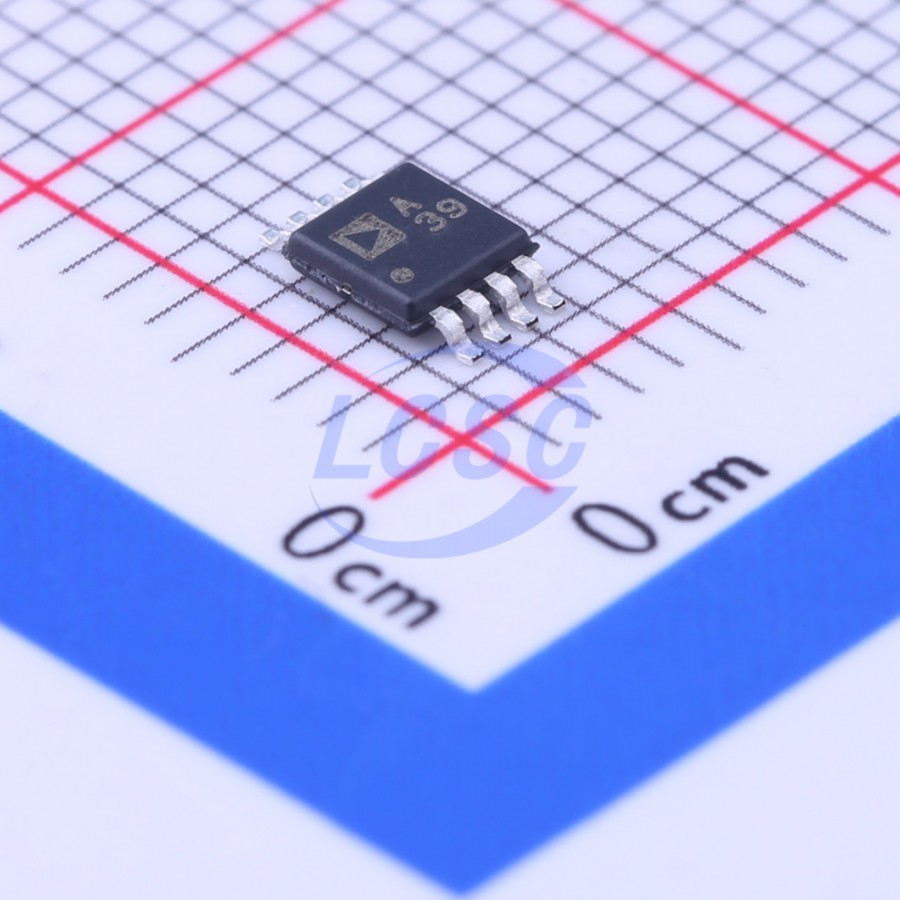

- package
- MSOP-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | Output, Channel A |
| 2 | -IN A | input | Inverting Input, Channel A |
| 3 | +IN A | input | Noninverting Input, Channel A |
| 4 | V- | power in | Negative Supply Voltage |
| 5 | +IN B | input | Noninverting Input, Channel B |
| 6 | -IN B | input | Inverting Input, Channel B |
| 7 | OUT B | output | Output, Channel B |
| 8 | V+ | power in | Positive Supply Voltage |
절대 최대 정격
| Supply Voltage | 55V |
권장 동작 조건
| Supply Voltage | 4.5 to 55V | Single-supply |
| Supply Voltage | 2.25 to 27.5V | Dual-supply (±) |
| Temperature Range | -40 to 125°C |
오더링 코드
- R7
- 7-inch reel
- RL
- Large reel
