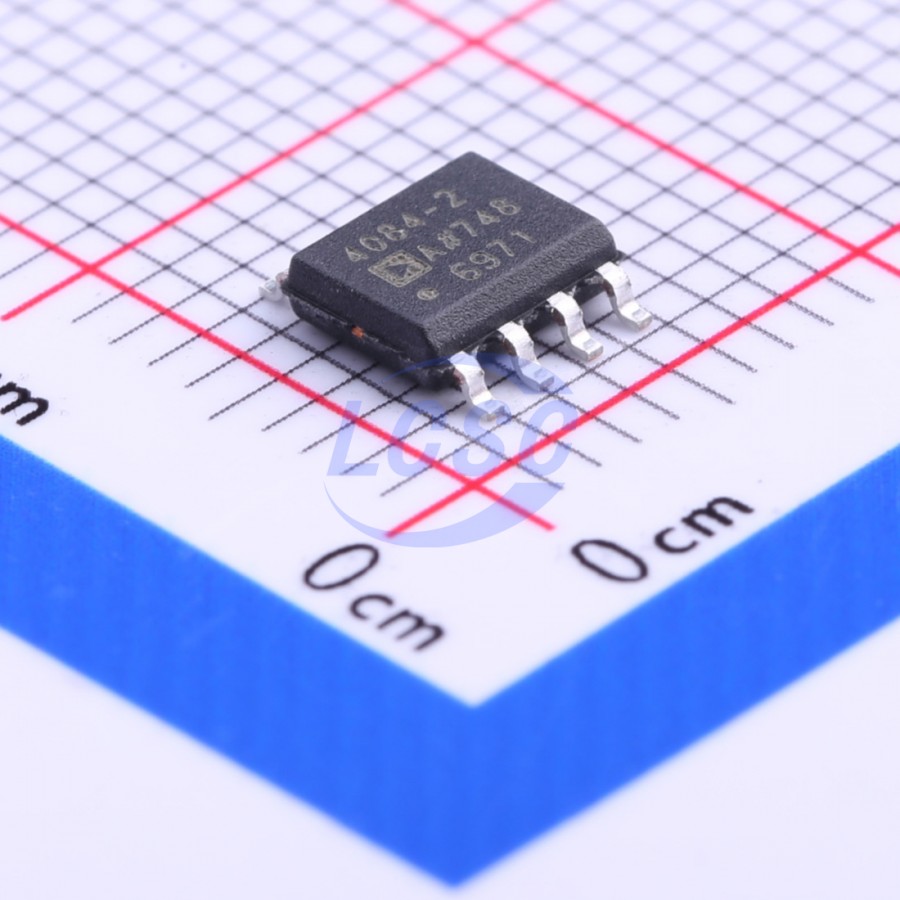

주요 스펙 요약(22)
- Common Mode Rejection Ratio Cmrr보강
- 88dB
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Gain Bandwidth Product검증
- 15.9MHz
- Ib Input Bias Current
- 250nA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 25nA
- Input Offset Voltage Drift Vos Tc
- 500nV/℃
- Vos Input Offset Voltage보강
- 100µV
- Maximum Power Supply Range Vdd Vss
- 30V
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 30mA
- Quiescent Current
- 625uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 3 to 30V
- Slew Rate검증
- 4.6V/us
- Input Bias Current보강
- 250
- Max Supply Voltage보강
- 30V
- Noise Density E N
- 3.9nV/√Hz@1kHz
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | OUT A | output | Output, Channel A |
| 2 | -IN A | input | Negative Input, Channel A |
| 3 | +IN A | input | Positive Input, Channel A |
| 4 | V- | power in | Negative Supply |
| 5 | +IN B | input | Positive Input, Channel B |
| 6 | -IN B | input | Negative Input, Channel B |
| 7 | OUT B | output | Output, Channel B |
| 8 | V+ | power in | Positive Supply |
절대 최대 정격
| Supply Voltage | 18V | ± |
| Input Voltage | V− ≤ VIN ≤ V+ | |
| Differential Input Voltage | 0.6V | |
| Storage Temperature Range | -65 to 150°C | |
| Operating Temperature Range | -40 to 125°C | |
| Junction Temperature Range | -65 to 150°C |
권장 동작 조건
| Supply Voltage | 30V | max |
| Supply Voltage | 3V | min |
| Operating Temperature | -40 to 125°C |
열 특성
- theta ja
- 121
- theta jc
- 43
등급 · 신뢰성
- esd cdm
- 1.25 kV
- esd hbm
- 4.5 kV
오더링 코드
- R7
- Tape and Reel
- RL
- Tape and Reel
- Z
- RoHS Compliant
