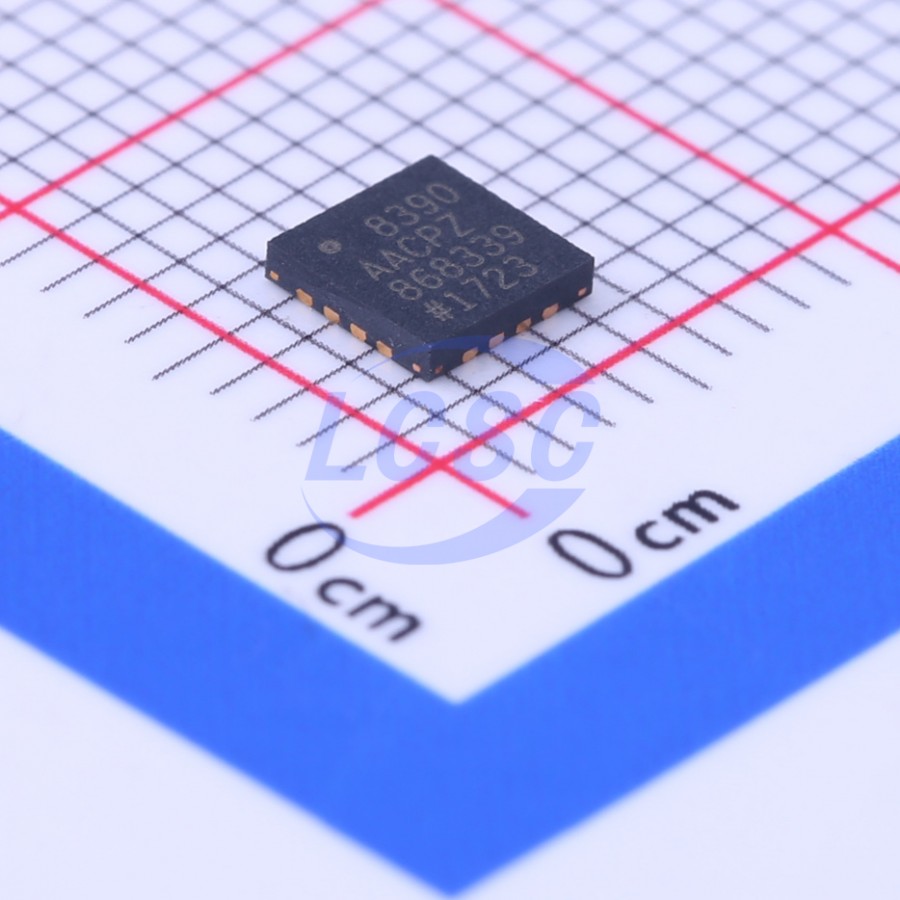

주요 스펙 요약(17)
- Common Mode Rejection Ratio Cmrr
- 69dB
- Dual Supply
- -12V~-5V;5V~12V
- Gain Bandwidth Product
- -
- Ib Input Bias Current
- 1uA
- Input Offset Current Ios
- 0.05uA
- Vos Input Offset Voltage
- 1mV
- Maximum Power Supply Range Vdd Vss
- 24V
- Noise Density E N
- 5nV/√Hz@10kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+85℃
- Output Current
- 400mA
- Output Type
- Differential
- Power Supply Rejection Ratio Psrr
- 94dB
- Quiescent Current
- 5.5mA
- Single Supply
- 10 to 24V
- Slew Rate
- 260V/us
- package
- LFCSP-16-EP(4x4)
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 16-Lead LFCSP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | INP | input | Amplifier Noninverting Input |
| 2 | PD1 | input | Power Mode Control |
| 3 | PD0 | input | Power Mode Control |
| 4 | INN | input | Amplifier Inverting Input |
| 5 | NC | no connect | No Connection |
| 6 | DGND | power in | Ground |
| 7 | IADJ | input | Bias Current Adjustment |
| 8 | NC | no connect | No Connection |
| 9 | OUTP | output | Amplifier Noninverting Output |
| 10 | VCC | power in | Positive Power Supply |
| 11 | VEE | power in | Negative Power Supply |
| 12 | OUTN | output | Amplifier Inverting Output |
| 13 | NC | no connect | No Connection |
| 14 | NC | no connect | No Connection |
| 15 | VCOM | power in | Common-Mode Voltage |
| 16 | NC | no connect | No Connection |
절대 최대 정격
| Supply Voltage (VCC − VEE) | 26V | |
| Maximum Junction Temperature (TJ MAX) | 150°C | |
| Operating Temperature Range (TA) | -40 to +85°C | |
| Storage Temperature Range | -65 to +150°C | |
| Lead Temperature (Soldering, 10 sec) | 300°C |
권장 동작 조건
| Supply Voltage | 10V | Single- or dual-supply (e.g. ±5V) |
| Supply Voltage | 24V | Single- or dual-supply (e.g. ±12V) |
| Quiescent Supply Current | 5.5mA | Full power ADSL and ADSL2+ CO applications |
열 특성
- theta ja
- 30.4
- theta jc
- 16
오더링 코드
- R2
- 250 Piece Reel
- RL
- 13” Tape and Reel
- R7
- 7” Tape and Reel
