주요 스펙 요약(19)
- Common Mode Rejection Ratio Cmrr
- 80dB
- features
- -
- Gain Bandwidth Product
- 300MHz
- Ib Input Bias Current
- 3.5uA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 300nA
- Input Offset Voltage Drift Vos Tc
- 3.5uV/℃
- Vos Input Offset Voltage
- 2mV
- Maximum Power Supply Range Vdd Vss
- 8V
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+85℃
- Output Current
- 50mA
- Quiescent Current
- 6.8mA
- Rail To Rail
- Rail-to-Rail Output
- Single Supply
- 2.7 to 8V
- Slew Rate
- 650V/us
- Dual Supply
- -
- Noise Density E N
- 8.5nV/√Hz@100kHz

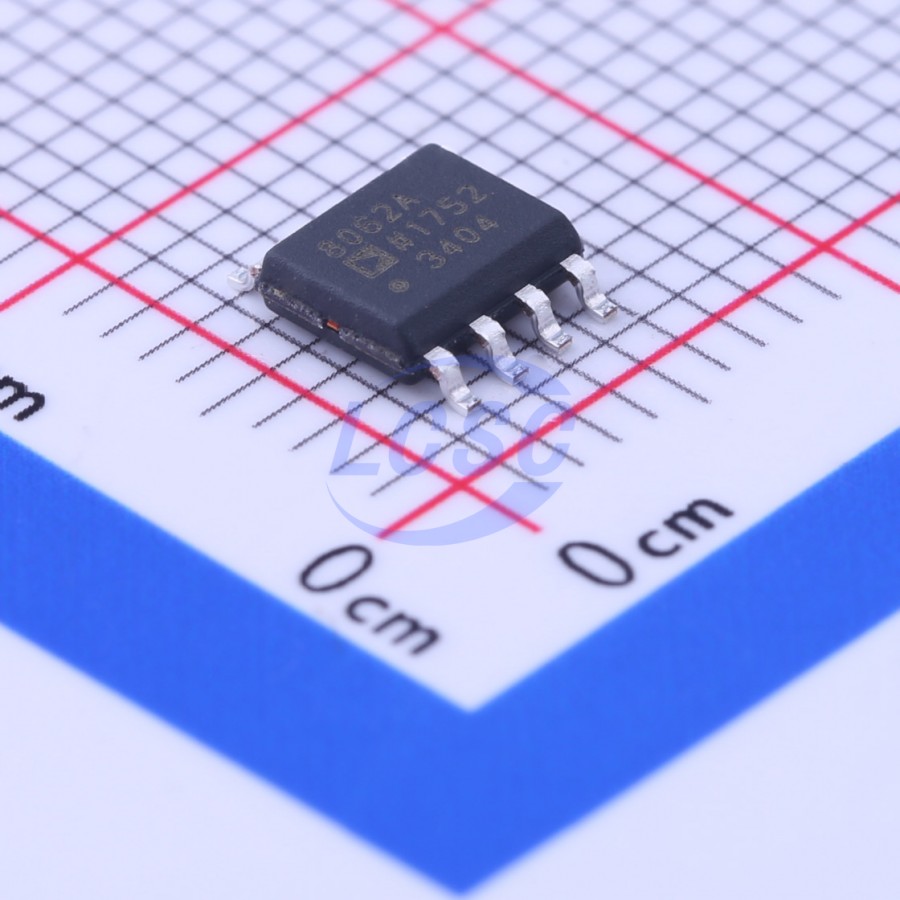

- package
- SOIC-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead SOIC (R-8) · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | -IN1 | input | None |
| 2 | +IN1 | input | None |
| 3 | +VS | power in | None |
| 4 | VOUT1 | output | None |
| 5 | -VS | power in | None |
| 6 | VOUT2 | output | None |
| 7 | -IN2 | input | None |
| 8 | +IN2 | input | None |
절대 최대 정격
| Supply Voltage | 8V | |
| Input Voltage (Common Mode) | -VS - 0.2 to +VS + 0.2V | |
| Differential Input Voltage | ±VSV | |
| Storage Temperature | -65 to +125°C |
권장 동작 조건
| Supply Voltage | 2.7 to 8V | |
| Operating Temperature | -40 to +85°C |
열 특성
- theta ja
- 160°C/W
- theta jc
- 56°C/W
오더링 코드
- R-8
- 8-lead SOIC_N
