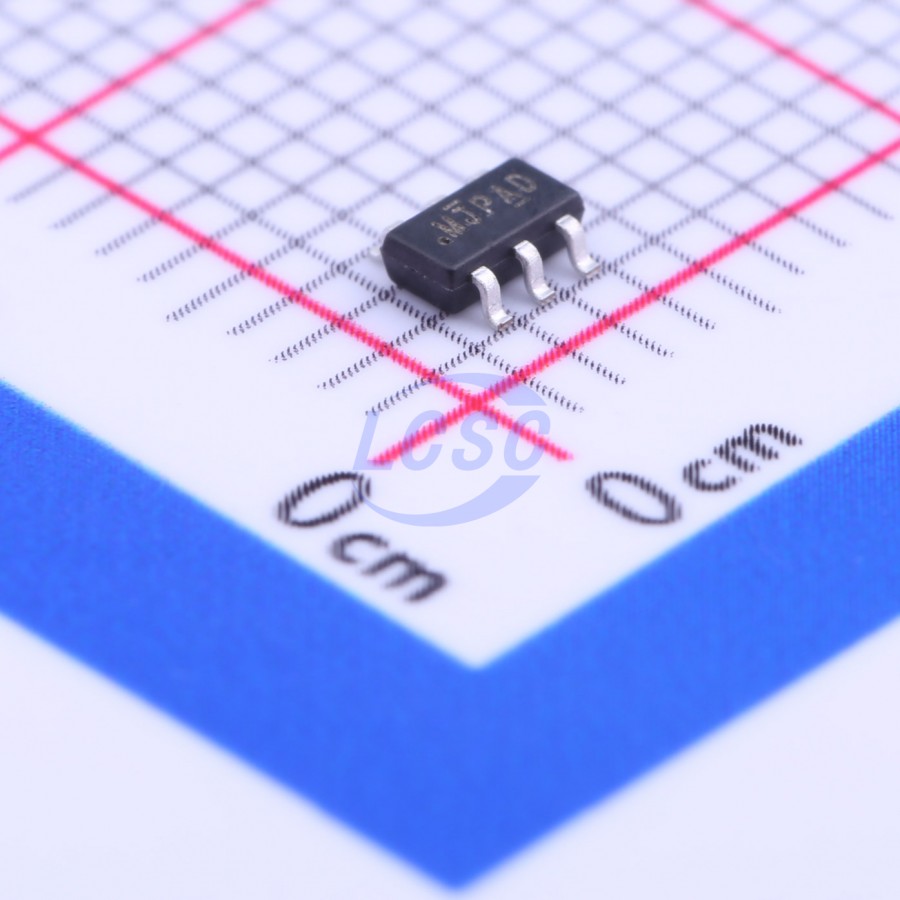

주요 스펙 요약(29)
데이터시트 대조일치 7보강 2
- Continuous Drain Current Id검증
- -2.9A
- Drain To Source Resistance
- 133mΩ
- Drain To Source Voltage Vdss검증
- -30V
- Fall Time
- 12ns
- Gate To Source Voltage Vgs검증
- 20V
- Input Capacitance검증
- 210pF
- Lead Free
- Lead Free
- Max Power Dissipation검증
- 1.4W
- Mount Type
- Surface Mount
- Nominal Vgs
- -1.2V
- Number Of Channels
- 2
- Operating Temperature Max검증
- 150°C
- Operating Temperature Min검증
- -55°C
- Package Case
- SMALL OUTLINE, R-PDSO-G6
- Package Quantity
- 3000
- Packing Style
- Tape and Reel
- Lifecycle Status
- Active
- package
- SMALL OUTLINE, R-PDSO-G6
- Pin Count보강
- 6
- polarity
- P-CHANNEL
- Power Dissipation보강
- 1.4W
- Rds On Max
- 111mΩ
- Reach Compliant
- No
- Rohs Compliant
- Yes
- series
- TrenchFET®
- Threshold Voltage
- -1.2V
- Turn Off Delay Time
- 17ns
- Turn On Delay Time
- 10ns
- weight
- 0.000705oz
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSOP-6 · 6 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | S1 | passive | Source 1 |
| 2 | G1 | input | Gate 1 |
| 3 | D1 | output | Drain 1 |
| 4 | S2 | passive | Source 2 |
| 5 | G2 | input | Gate 2 |
| 6 | D2 | output | Drain 2 |
출처 1 ↗추출 신뢰도: 높음
패키지 정보
- package
- TSOP-6
절대 최대 정격
| Drain-Source Voltage | -30V | |
| Gate-Source Voltage | 20V | |
| Continuous Drain Current (TJ = 150 °C, TC = 25 °C) | -2.9A | |
| Maximum Power Dissipation (TC = 25 °C) | 1.4W |
권장 동작 조건
| Operating Junction and Storage Temperature Range | -55 to 150°C |
열 특성
- theta ja
- 93 to 110 °C/W
오더링 코드
- T1
- TSOP-6
