국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(17)
- Data Rate검증
- -
- features
- -
- interface
- I2C;SPI
- Max Supply Voltage보강
- 3.9V
- Min Supply Voltage보강
- 1.8V
- Number Of Drivers보강
- 8
- Number Of Receivers보강
- 8
- Operating Supply Voltage보강
- 1.8V
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- WLCSP-35(3.11x2.14)
- Pin Count보강
- 35
- Quiescent Current Iq
- -
- Supply Current
- -
- Voltage Supply
- 1.7 to 1.9V
- Number Of Transmitters보강
- 8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · CB-35-2 · 28 핀
| # | Name | Type | Function |
|---|---|---|---|
| A5 | LED1A | output | LED Driver 1A Current Sink |
| A4 | LED2A | output | LED Driver 2A Current Sink |
| A3 | LED3A | output | LED Driver 3A Current Sink |
| A2 | LED4A | output | LED Driver 4A Current Sink |
| A1 | LED4B | output | LED Driver 4B Current Sink |
| B5 | LGND | power in | LED Driver Ground |
| B4 | LED1B | output | LED Driver 1B Current Sink |
| B3 | LED2B | output | LED Driver 2B Current Sink |
| B2 | LED3B | output | LED Driver 3B Current Sink |
| B1 | GPIO2 | bidirectional | General-Purpose I/O 2 |
| C5 | GPIO0 | bidirectional | General-Purpose I/O 0 |
| C4 | GPIO1 | bidirectional | General-Purpose I/O 1 |
| C3 | GPIO3 | bidirectional | General-Purpose I/O 3 |
| C2 | SCLK | input | SPI Clock Input |
| C1 | MISO | output | SPI Master Input/Slave Output |
| D5 | AVDD | power in | 1.8 V Analog Supply |
| D4 | DVDD2 | power in | 1.8 V Digital Supply |
| D3 | IOVDD | power in | 1.8 V/3.3 V I/O Driver Supply |
| D2 | CS | input | SPI Chip Select Input |
| D1 | MOSI | input | SPI Master Output/Slave Input |
| E5 | VREF | output | Internally Generated ADC Voltage Reference |
| E4 | AGND | power in | Analog Ground |
| E3 | IOGND | power in | I/O Driver Ground |
| E2 | DGND | power in | Digital Ground |
| E1 | DVDD1 | power in | 1.8 V Digital Supply |
| F5 | VC1 | output | Output Voltage Source 1 |
| F4 | IN1 | input | Current Input 1 |
| F3 | IN3 | input | Current Input 3 |
절대 최대 정격
| AVDD to AGND | 2.2V | max |
| DVDD1, DVDD2 to DGND | 2.2V | max |
| IOVDD to DGND | 3.9V | max |
| GPIOx, MOSI, MISO, SCLK, CS, SCL, SDA to DGND | 3.9V | max |
| LEDxx to LGND | 3.9V | max |
| Junction Temperature | 150°C |
권장 동작 조건
| Temperature Range | -40 to 85°C |
열 특성
- unit
- °C/W
- theta ja
- 41.89
- theta jc
- 0.98
등급 · 신뢰성
- esd cdm
- 1250
- esd hbm
- 2000
- esd unit
- V
오더링 코드

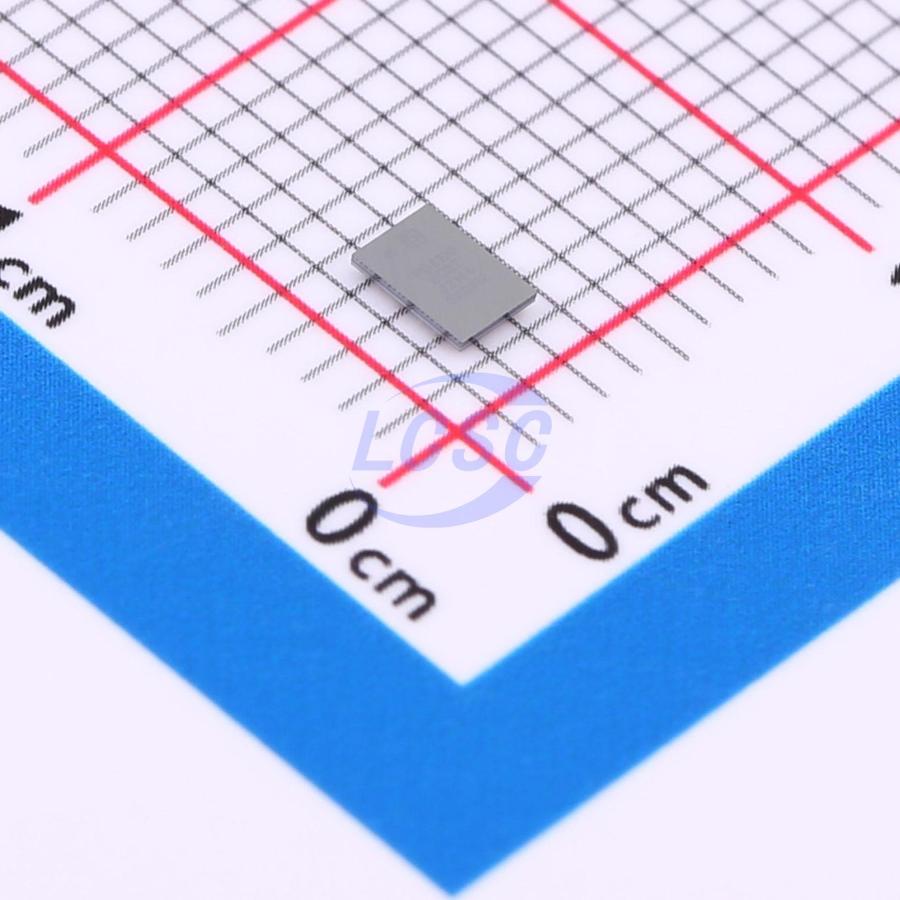

- ADPD4100BCBZR7
- 35-Ball WLCSP, RoHS Compliant
