국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(12)
- features
- Enable control;Over Current Protection;Thermal Shutdown
- Number Of Outputs검증
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Operating Voltage
- 20V
- Output Configuration
- Positive
- Output Current검증
- 200mA
- Output Type
- Fixed
- Output Voltage검증
- 3.3V

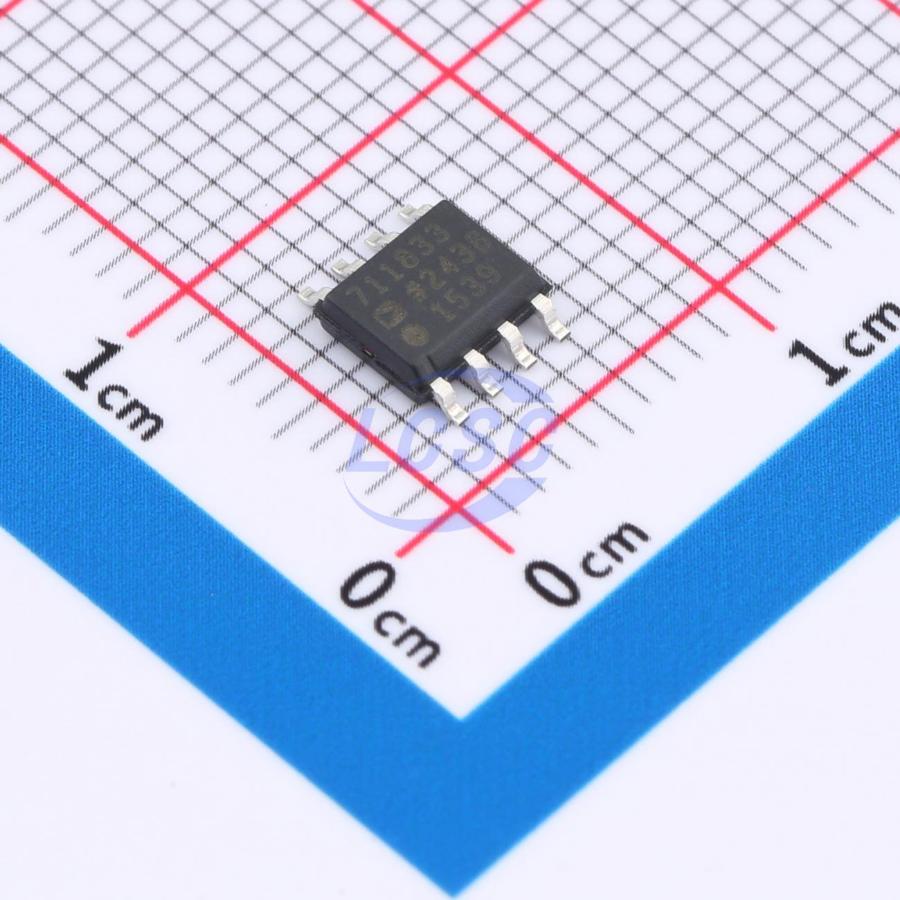

- package
- SOIC-8-EP
- Package Industry Name보강
- SOIC
- Pin Count보강
- 8
- Supply Current Iq
- 50uA
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead SOIC · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VOUT | output | Regulated Output Voltage. Bypass VOUT to GND with a 2.2 µF or greater capacitor. |
| 2 | SENSE/ADJ | input | Sense Input (SENSE). Connect to load. An external resistor divider may also set the output voltage higher than the fixed |
| 3 | GND | power in | Ground. |
| 4 | EN | input | The enable pin controls the operation of the LDO. Drive EN high to turn on the regulator. Drive EN low to turn off the r |
| 5 | SS | input | Soft Start. An external capacitor connected to this pin determines the soft-start time. Leave this pin open for a typica |
| 6 | VIN | power in | Regulator Input Supply. Bypass VIN to GND with a 2.2 µF or greater capacitor. |
| 7 | VIN | power in | Regulator Input Supply. Bypass VIN to GND with a 2.2 µF or greater capacitor. |
| 8 | VIN | power in | Regulator Input Supply. Bypass VIN to GND with a 2.2 µF or greater capacitor. |
절대 최대 정격
| VIN to GND | -0.3 to +24V | |
| VOUT to GND | -0.3 to VINV | |
| EN to GND | -0.3 to +24V | |
| SENSE/ADJ to GND | -0.3 to +6V | |
| SS to GND | -0.3 to VIN or +6V | whichever is less |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature (TJ) | 150°C |
권장 동작 조건
| Input voltage range | 2.7 to 20V | |
| Operating Ambient Temperature (TA) Range | -40 to +125°C |
열 특성
- theta ja
- 52.7
- theta jc
- 41.5
등급 · 신뢰성
- aec q
- AEC-Q100 qualified
오더링 코드
- ARDZ-3.3
- 8-Lead SOIC_N_EP, 3.3V Output
유사 부품
이 부품을 사용한 Reference Design
0건제조사가 검증한 시스템 회로 + BOM + Gerber 자료. 데이터시트의 typical circuit 보다 한 단계 완제품에 가까움.
