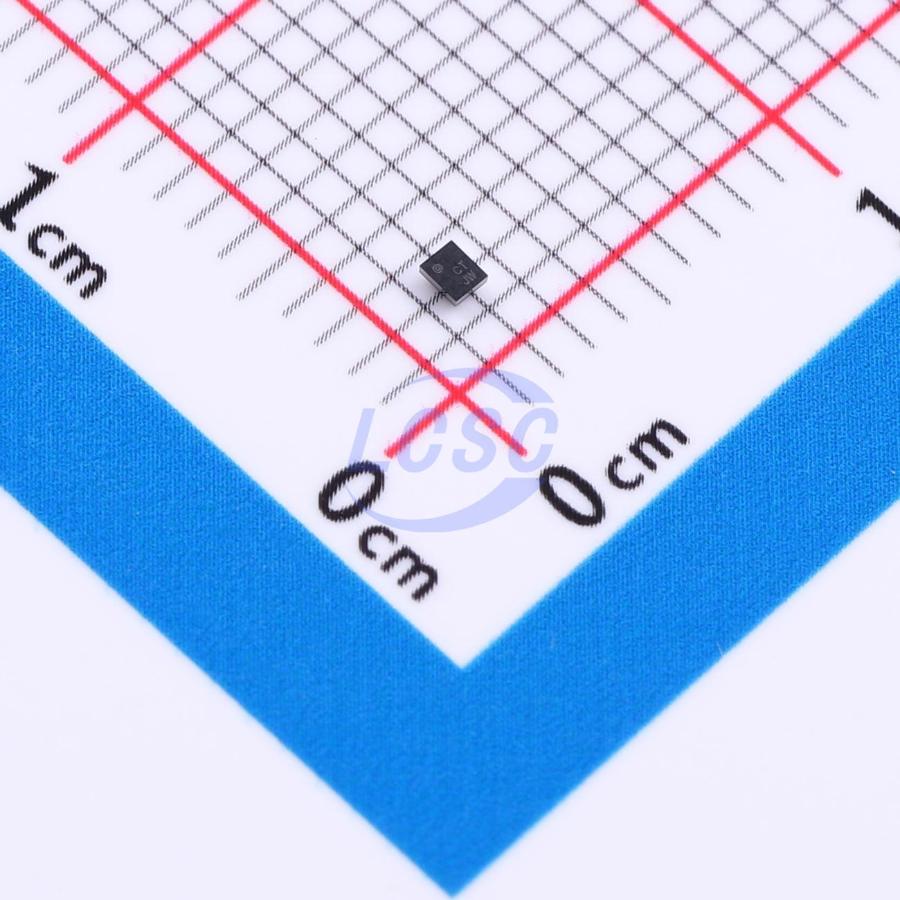

Analog Devices ADP7112ACBZ-3.3-R7
수집 데이터Linear Regulators

Analog Devices

ADP7112ACBZ-3.3-R7

linear regulator

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(12)

features
Enable control;Over Current Protection;Thermal Shutdown
Number Of Outputs
1
Operating Temperature
-40℃~+125℃@(Tj)
Output Configuration
Positive
Output Current검증
200mA
Output Type
Fixed;Adjustable
Output Voltage검증
3.3V;1.2V~19.8V
package
WLCSP-6(1x1.2)
Supply Current Iq
50uA
Voltage Supply
20V
Pin Count보강
6
Package Industry Name보강
WLCSP

데이터시트 추출 정보

데이터시트에서 직접 추출한 사실 (출처 명시)

핀 배치 · 6-Ball WLCSP · 6 핀

#NameTypeFunction
A1VINpower inRegulator Input Supply
B1SSinputSoft Start
C1ENinputThe enable pin controls the operation of the LDO
A2VOUTpower outRegulated Output Voltage
B2SENSE/ADJinputSense Input (SENSE) or Adjustable Model (ADJ)
C2GNDpower inGround

절대 최대 정격

VIN to GND-0.3 to +24V
VOUT to GND-0.3 to VINV
EN to GND-0.3 to +24V
SENSE/ADJ to GND-0.3 to +6V
SS to GND-0.3 to VIN or +6Vwhichever is less
Storage Temperature Range-65 to +150°C
Operating Junction Temperature (TJ) Range-40 to +125°C
Operating Ambient Temperature (TA) Range-40 to +85°C

권장 동작 조건

Input voltage range2.7 to 20V
Quiescent current, IGND50μAtypical with no load

열 특성

unit
°C/W
theta ja
260
theta jc
4

오더링 코드

Z
RoHS Compliant Part

마킹 코드

CT6-Ball WLCSP

유사 부품

이 부품을 사용한 Reference Design

0건

제조사가 검증한 시스템 회로 + BOM + Gerber 자료. 데이터시트의 typical circuit 보다 한 단계 완제품에 가까움.

응용 회로 (데이터시트)
