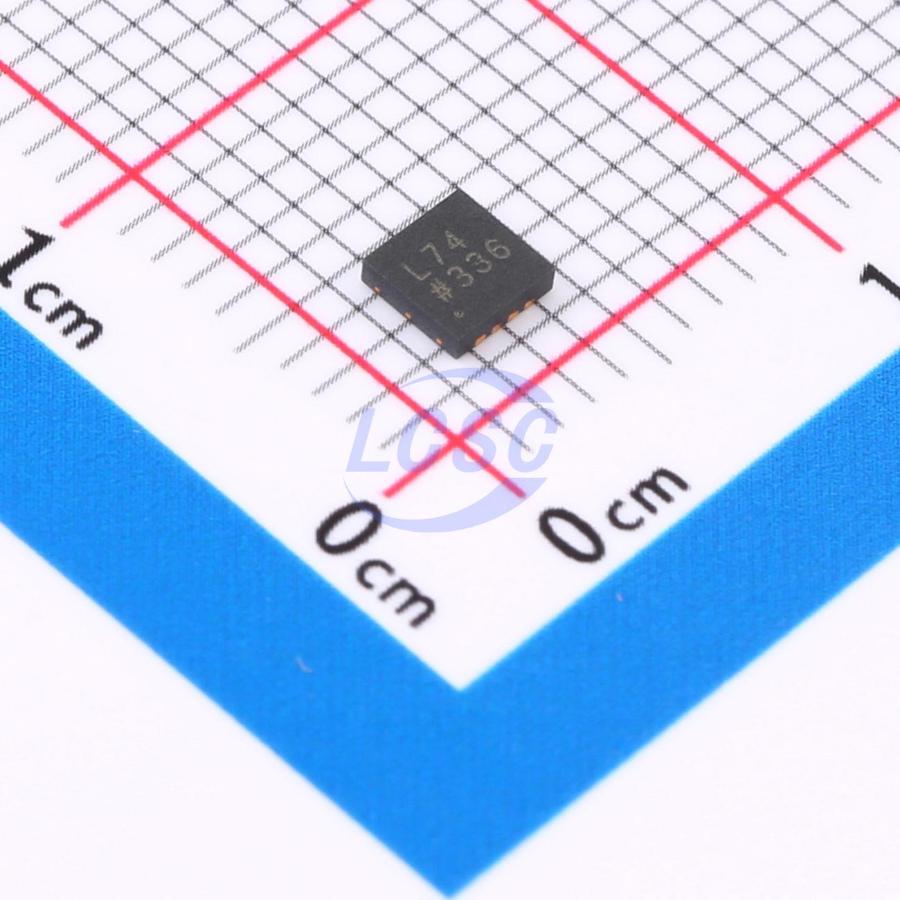

주요 스펙 요약(12)
- features
- Enable control;Over Current Protection;Thermal shutdown
- Number Of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Operating Voltage
- 5.5V
- Output Configuration
- Positive
- Output Current검증
- 1A
- Output Type
- Fixed
- Output Voltage검증
- 3.3V
- package
- LFCSP-8-EP(3x3)
- Supply Current Iq
- 1.2mA
- Pin Count보강
- 8
- Package Industry Name보강
- LFCSP
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | EN | input | Enable Input. Drive EN high to turn on the regulator; drive it low to turn off the regulator. |
| 2 | GND | power in | Ground. |
| 3 | IN | power in | Regulator Input Supply. Bypass IN to GND with a 4.7 µF or greater capacitor. |
| 4 | IN | power in | Regulator Input Supply. Bypass IN to GND with a 4.7 µF or greater capacitor. |
| 5 | OUT | power out | Regulated Output Voltage. Bypass OUT to GND with a 4.7 µF or greater capacitor. |
| 6 | OUT | power out | Regulated Output Voltage. Bypass OUT to GND with a 4.7 µF or greater capacitor. |
| 7 | SENSE | input | Sense. Measures the actual output voltage at the load and feeds it to the error amplifier. |
| 8 | TRK | input | Track. The output follows the voltage applied at the TRK pin. |
절대 최대 정격
| IN to GND | -0.3 to +6V | |
| OUT to GND | -0.3 to INV | |
| EN to GND | -0.3 to +6V | |
| SS/ADJ/TRK to GND | -0.3 to +6V | |
| SENSE to GND | -0.3 to +6V | |
| Storage Temperature Range | -65 to +150°C | |
| Operating Junction Temperature Range | -40 to +125°C |
권장 동작 조건
| Input voltage range | 2.5 to 5.5V | |
| Shutdown current | <1µA |
열 특성
- unit
- °C/W
- theta ja
- 66
오더링 코드
- R7
- Reel, 1500
