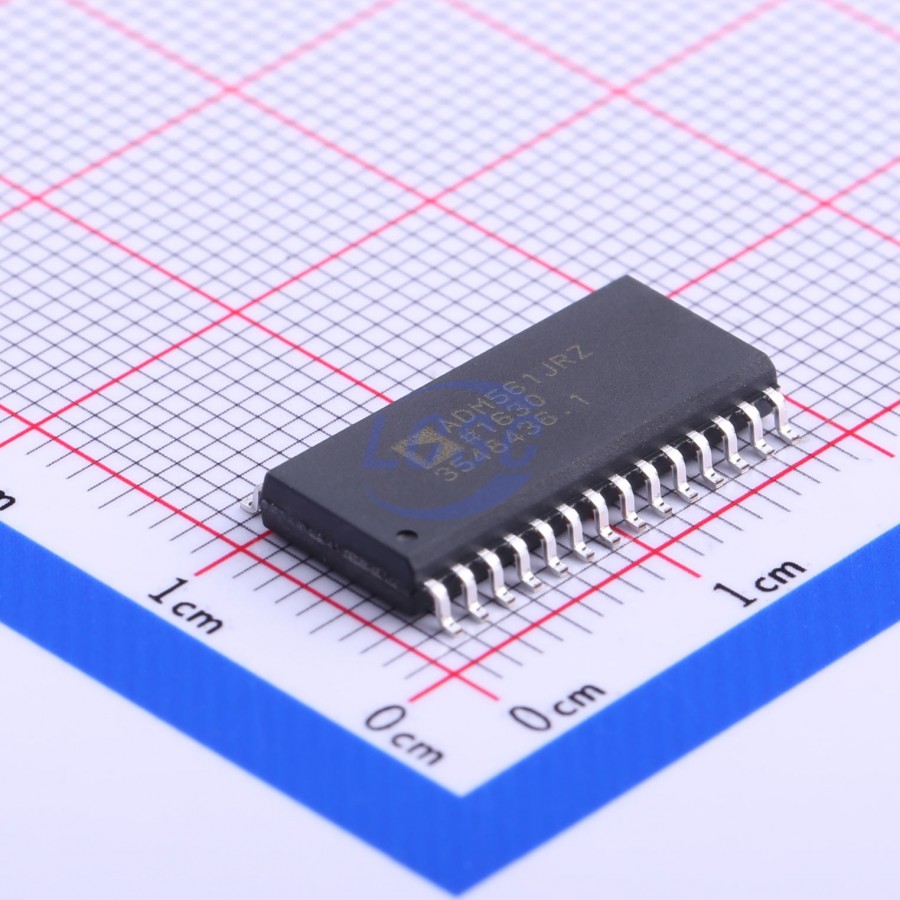

ADM561JRZ

interface

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(13)

데이터시트에서 직접 추출한 사실 (출처 명시)

#	Name	Type	Function
1	T3OUT	output	Transmitter (Driver) Output
2	T1OUT	output	Transmitter (Driver) Output
3	T2OUT	output	Transmitter (Driver) Output
4	R2IN	input	Receiver Input
5	R2OUT	output	Receiver Output
6	T1IN	input	Transmitter (Driver) Input
7	EN	input	Receiver Enable
8	T4IN	input	Transmitter (Driver) Input
9	R1IN	input	Receiver Input
10	GND	power in	Ground Pin
11	VCC	power in	Power Supply Input
12	C1+	passive	External Capacitor 1
13	V+	power out	Internally Generated Positive Supply
14	C2+	passive	External Capacitor 2
15	C2-	passive	External Capacitor 2
16	C1-	passive	External Capacitor 1
17	V-	power out	Internally Generated Negative Supply
18	R5IN	input	Receiver Input
19	R5OUT	output	Receiver Output
20	T3IN	input	Transmitter (Driver) Input
21	R1OUT	output	Receiver Output
22	R4OUT	output	Receiver Output
23	R4IN	input	Receiver Input
24	EN	input	Receiver Enable
25	SHDN	input	Shutdown Control
26	R3OUT	output	Receiver Output
27	R3IN	input	Receiver Input
28	T4OUT	output	Transmitter (Driver) Output

Operating Temperature	0°C	min
VCC	3.3V	± 10%
