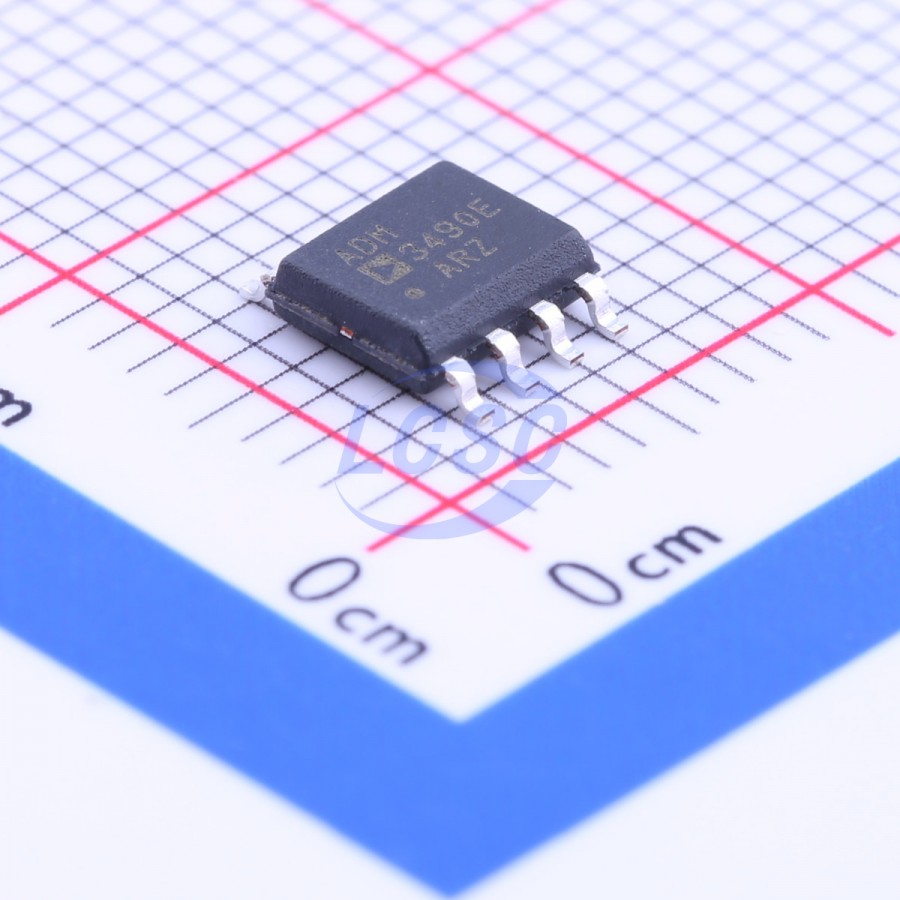

주요 스펙 요약(18)
- Data Rate검증
- 12Mbps
- duplex
- Full-Duplex
- Esd Protect
- ±15kV
- Max Supply Voltage보강
- 6V
- Min Supply Voltage보강
- 3.0V
- Number Of Drivers
- 1
- Number Of Nodes
- 32
- Number Of Receivers검증
- 1
- Number Of Transceivers보강
- 1
- Number Of Transmitters보강
- 1
- Operating Supply Voltage보강
- 3.3V
- Operating Temperature
- -40℃~+85℃
- package
- SOIC-8
- Quiescent Supply Current
- 1.9mA
- type
- Transceiver
- Voltage Supply
- 3 to 3.6V
- Pin Count보강
- 8
- Supply Current보강
- 1.1mA
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead SOIC_N · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VCC | power in | Power Supply, 3.3 V ± 0.3 V |
| 2 | RO | output | Receiver Output |
| 3 | DI | input | Driver Input |
| 4 | GND | power in | Ground |
| 5 | A | bidirectional | Noninverting Receiver Input A and Noninverting Driver Output A |
| 6 | B | bidirectional | Inverting Receiver Input B and Inverting Driver Output B |
| 7 | Z | output | Inverting Driver Output |
| 8 | Y | output | Noninverting Driver Output |
절대 최대 정격
| VCC to GND | -0.3 to +6V | |
| Digital Input/Output Voltage (DE, RE, DI) | -0.3 to +6V | |
| Receiver Output Voltage (RO) | -0.3 to (VCC + 0.3)V | |
| Driver Output (A, B, Y, Z)/Receiver Input (A, B) Voltage | -8 to +13V | |
| Driver Output Current | 250mA | |
| Operating Temperature Range | -40 to +85°C | |
| Storage Temperature Range | -65 to +150°C |
권장 동작 조건
| Supply Voltage Range | 3.0 to 3.6V | |
| Supply Current (No load, DI=0/VCC, DE=VCC, RE=0/VCC) | 1.1mA | typ |
| Supply Current (No load, DI=0/VCC, DE=0, RE=0) | 0.95mA | typ |
열 특성
- theta ja
- 120
등급 · 신뢰성
- esd hbm
- 15
