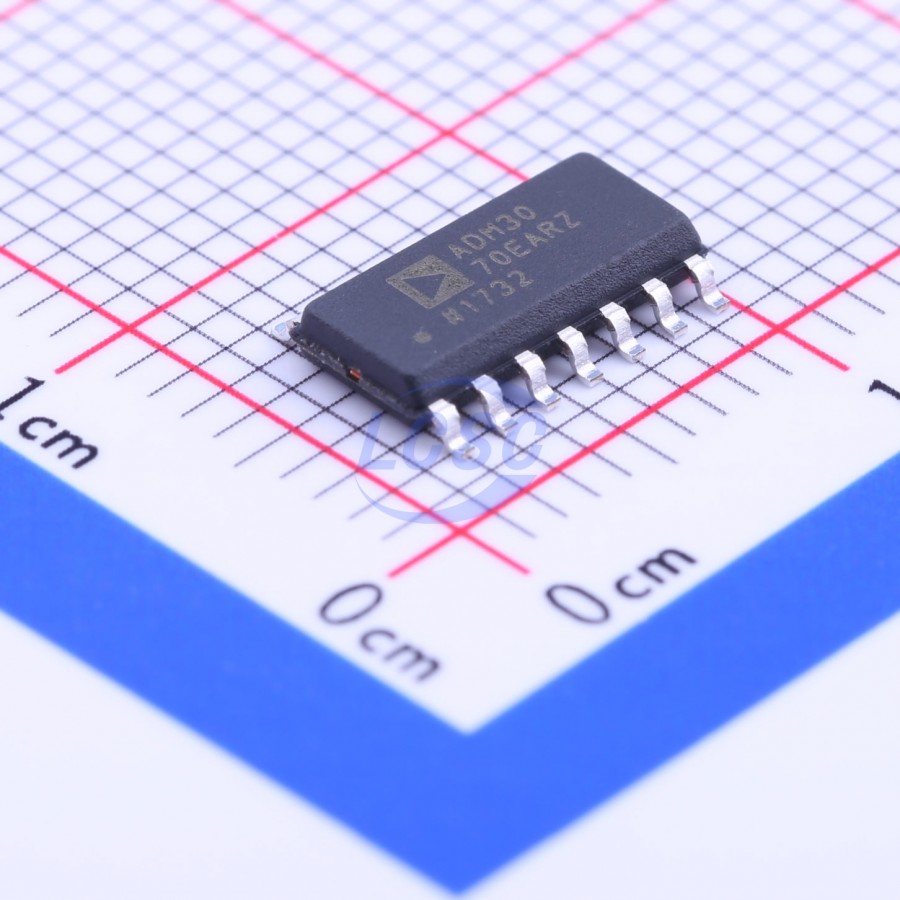

국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(12)
- Data Rate검증
- 250Kbps
- Max Supply Voltage보강
- 6V
- Number Of Drivers검증
- 1
- Number Of Receivers검증
- 1
- Operating Supply Voltage보강
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-14
- Pin Count보강
- 14
- type
- Transceiver
- Voltage Supply
- 3 to 3.6V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Lead SOIC_N · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | NC | no connect | No Connect |
| 2 | RO | output | Receiver Output |
| 3 | RE | input | Receiver Output Enable |
| 4 | DE | input | Driver Output Enable |
| 5 | DI | input | Driver Input |
| 6 | Z | output | Inverting Driver Output |
| 7 | Y | output | Noninverting Driver Output |
| 8 | GND | power in | Ground |
| 9 | GND | power in | Ground |
| 10 | B | bidirectional | Inverting Receiver Input B and Inverting Driver Output B |
| 11 | A | bidirectional | Noninverting Receiver Input A and Noninverting Driver Output A |
| 12 | NC | no connect | No Connect |
| 13 | VCC | power in | Power Supply |
| 14 | NC | no connect | No Connect |
절대 최대 정격
| VCC to GND | -0.3 to +6V | |
| Digital Input/Output Voltage (DE, RE, DI) | -0.3 to +6V | |
| Receiver Output Voltage (RO) | -0.3 to (VCC + 0.3)V | |
| Driver Output (A, B, Y, Z)/Receiver Input (A, B) Voltage | -8 to +13V | |
| Driver Output Current | 250mA |
권장 동작 조건
| Operating Temperature Range | -40 to 85°C | ADM307xEA |
열 특성
- theta ja
- 120
등급 · 신뢰성
- esd hbm
- 15
오더링 코드
- -REEL7
- 1,000 quantity
