국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(13)
- Cmti K V Us
- 25kV/us
- Data Rate보강
- 1Mbps
- Data Rate Max
- 1Mbps
- features
- Bus Fault Detection and Protection;Status indication and fault reporting
- Isolation Voltage Vrms
- 5000
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

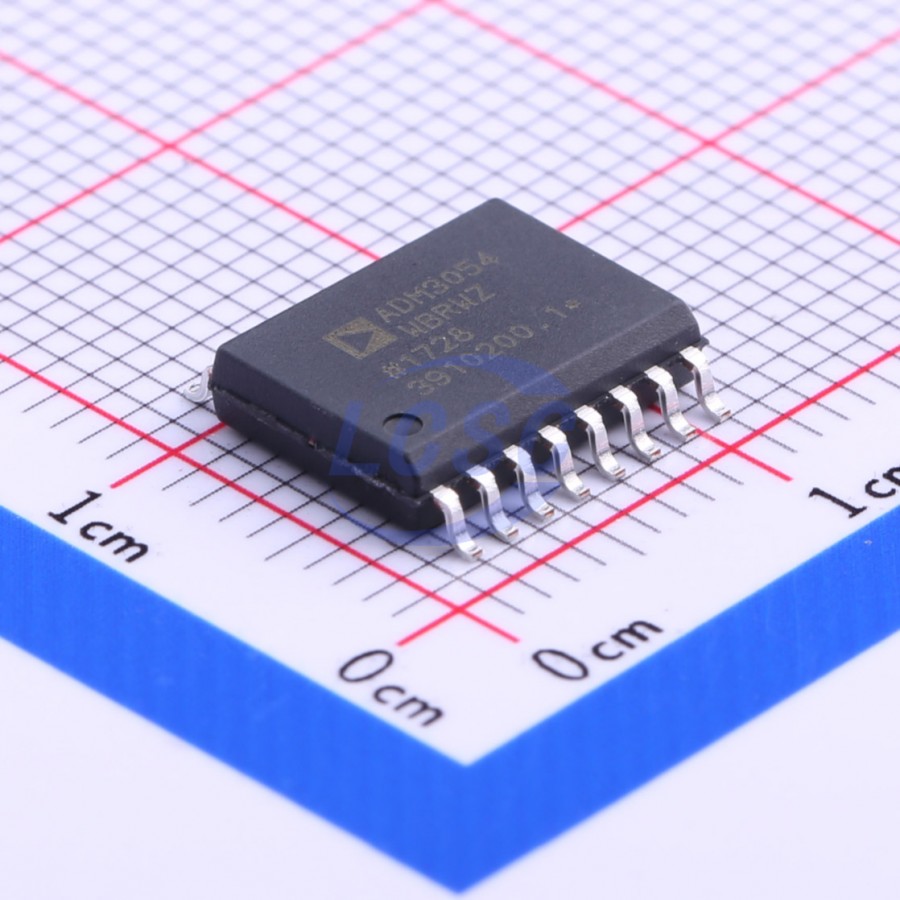

- package
- SOIC-16-300mil
- Pin Count보강
- 16
- Voltage Supply Bus
- 4.75 to 5.25V
- Voltage Supply Logic
- 3 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOIC_W · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | NC | no connect | No Connect |
| 2 | GND1 | power in | Ground (Logic Side) |
| 3 | GND1 | power in | Ground (Logic Side) |
| 4 | VDD2SENSE | input | VDD2 Voltage Sense |
| 5 | RxD | output | Receiver Output Data |
| 6 | TxD | input | Driver Input Data |
| 7 | VDD1 | power in | Power Supply (Logic Side); 3.3 V or 5 V |
| 8 | GND1 | power in | Ground (Logic Side) |
| 9 | GND2 | power in | Ground (Bus Side) |
| 10 | VREF | output | Reference Voltage Output |
| 11 | CANL | bidirectional | Low Level CAN Voltage Input/Output |
| 12 | CANH | bidirectional | High Level CAN Voltage Input/Output |
| 13 | VDD2 | power in | Power Supply (Bus Side); 5 V |
| 14 | NC | no connect | No Connect |
| 15 | NC | no connect | No Connect |
| 16 | GND2 | power in | Ground (Bus Side) |
절대 최대 정격
| VDD1, VDD2 | 6V | |
| TxD | VDD1 + 0.5V | |
| RxD | VDD1 + 0.5V | |
| VDD2SENSE | VDD1 + 0.5V | |
| CANH, CANL | 36V | |
| VREF | 6V | |
| Operating Temperature | 125°C | |
| Storage Temperature | 150°C | |
| ESD (HBM) | 3.5kV |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C |
열 특성
- theta ja
- 53
등급 · 신뢰성
- aec q
- Yes
- esd hbm
- 3.5 kV
오더링 코드
- -RL7
- Tape and Reel (implied by standard suffix usage, though not explicitly defined in text, part is listed in ordering guide)
