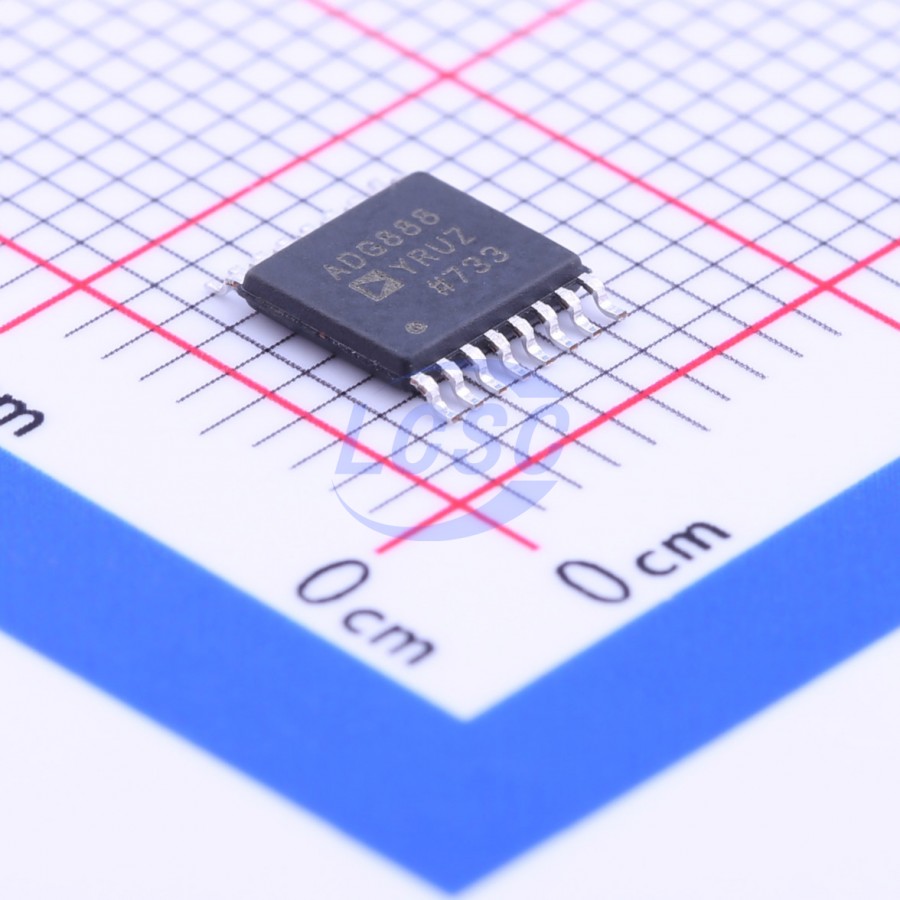

주요 스펙 요약(9)
- con
- 110pF
- Number Of Channels
- 4
- ron
- 600mΩ
- Operating Supply Voltage보강
- 5.5V
- Operating Temperature
- -40℃~+125℃
- package
- TSSOP-16
- Pin Count보강
- 16
- Propagation Delay
- 35ns
- Voltage Supply
- 1.8 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · WLCSP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1A | D4 | bidirectional | Drain Terminal 4 |
| 1B | S4A | bidirectional | Source Terminal 4A |
| 1C | S1A | bidirectional | Source Terminal 1A |
| 1D | D1 | bidirectional | Drain Terminal 1 |
| 2A | S4B | bidirectional | Source Terminal 4B |
| 2B | GND | power in | Ground (0 V) Reference |
| 2C | VDD | power in | Most Positive Power Supply Potential |
| 2D | S1B | bidirectional | Source Terminal 1B |
| 3A | S3B | bidirectional | Source Terminal 3B |
| 3B | IN2 | input | Logic Control Input |
| 3C | IN1 | input | Logic Control Input |
| 3D | S2B | bidirectional | Source Terminal 2B |
| 4A | D3 | bidirectional | Drain Terminal 3 |
| 4B | S3A | bidirectional | Source Terminal 3A |
| 4C | S2A | bidirectional | Source Terminal 2A |
| 4D | D2 | bidirectional | Drain Terminal 2 |
절대 최대 정격
| VDD to GND | -0.3V | |
| VDD to GND | 6V | |
| Analog/Digital Inputs | -0.3V | to VDD + 0.3 V or 30 mA |
| Peak Current (5 V operation) | 600mA | pulsed at 1 ms, 10% duty cycle max |
| Continuous Current (5 V operation) | 400mA | |
| Storage Temperature Range | -65°C | |
| Storage Temperature Range | 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range (Automotive) | -40°C | |
| Operating Temperature Range (Automotive) | 125°C | |
| Operating Temperature Range (WLCSP) | -40°C | |
| Operating Temperature Range (WLCSP) | 85°C |
열 특성
- theta ja
- 130
등급 · 신뢰성
- aec q
- Automotive (Y Version)
