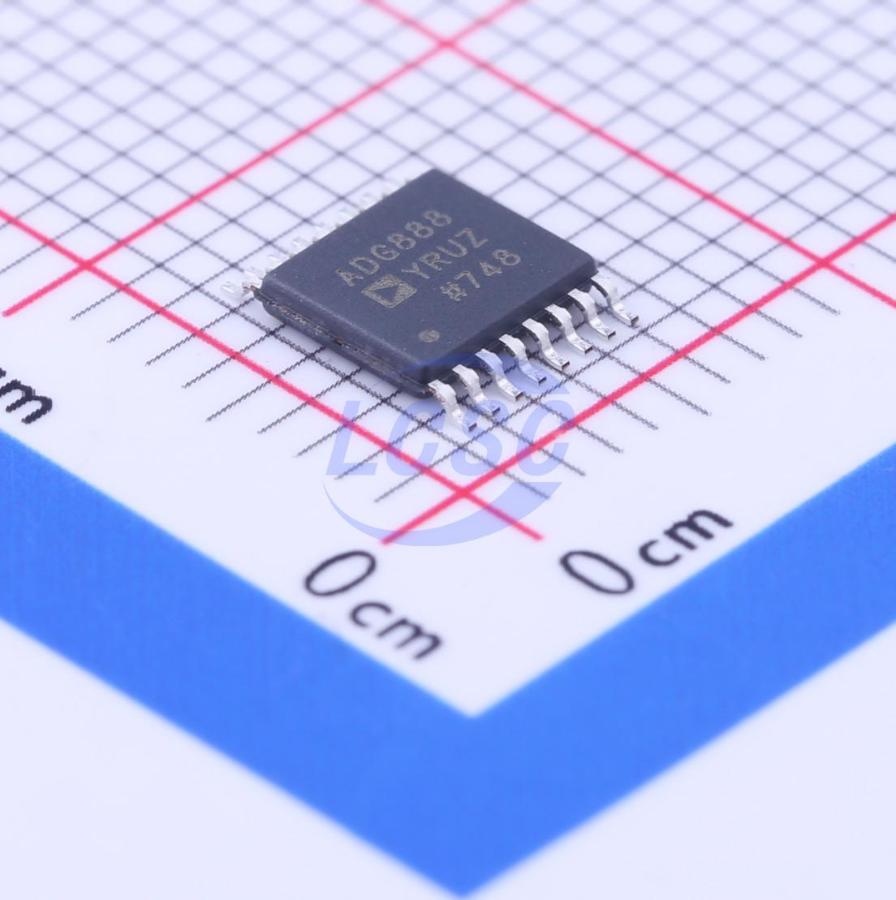

주요 스펙 요약(11)
- con
- 110pF
- Max Supply Voltage보강
- 6V
- Min Supply Voltage보강
- 1.8V
- Number Of Channels
- 4
- ron
- 600mΩ
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- 1.8 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | D1 | bidirectional | Drain Terminal 1. Can be an input or output. |
| 2 | S1A | bidirectional | Source Terminal 1A. Can be an input or output. |
| 3 | S1B | bidirectional | Source Terminal 1B. Can be an input or output. |
| 4 | S2B | bidirectional | Source Terminal 2B. Can be an input or output. |
| 5 | S2A | bidirectional | Source Terminal 2A. Can be an input or output. |
| 6 | D2 | bidirectional | Drain Terminal 2. Can be an input or output. |
| 7 | IN1 | input | Logic Control Input. |
| 8 | IN2 | input | Logic Control Input. |
| 9 | S3A | bidirectional | Source Terminal 3A. Can be an input or output. |
| 10 | D3 | bidirectional | Drain Terminal 3. Can be an input or output. |
| 11 | S3B | bidirectional | Source Terminal 3B. Can be an input or output. |
| 12 | S4B | bidirectional | Source Terminal 4B. Can be an input or output. |
| 13 | D4 | bidirectional | Drain Terminal 4. Can be an input or output. |
| 14 | S4A | bidirectional | Source Terminal 4A. Can be an input or output. |
| 15 | VDD | power in | Most Positive Power Supply Potential. |
| 16 | GND | power in | Ground (0 V) Reference. |
절대 최대 정격
| VDD to GND | -0.3 to +6V | |
| Analog/Digital Inputs | -0.3 to VDD + 0.3 or 30V/mA | whichever occurs first |
| Peak Current (S or D) | 600mA | 5 V operation, 1 ms, 10% duty cycle |
| Continuous Current (S or D) | 400mA | 5 V operation |
| Operating Temperature Range (Automotive Y) | -40 to +125°C | |
| Operating Temperature Range (TSSOP/LFCSP) | -40 to +125°C | |
| Operating Temperature Range (WLCSP) | -40 to +85°C | |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage Range | 1.8 to 5.5V |
열 특성
- unit
- °C/W
- theta ja
- 112 (TSSOP), 130 (WLCSP), 30.4 (LFCSP)
- theta jc
- 27.6 (TSSOP)
등급 · 신뢰성
- aec q
- Yes (Automotive temperature range)
