국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(11)
- con
- 420pF
- Max Supply Voltage보강
- 7V
- Min Supply Voltage보강
- 1.8V
- Number Of Channels
- 1
- ron
- 700mΩ
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

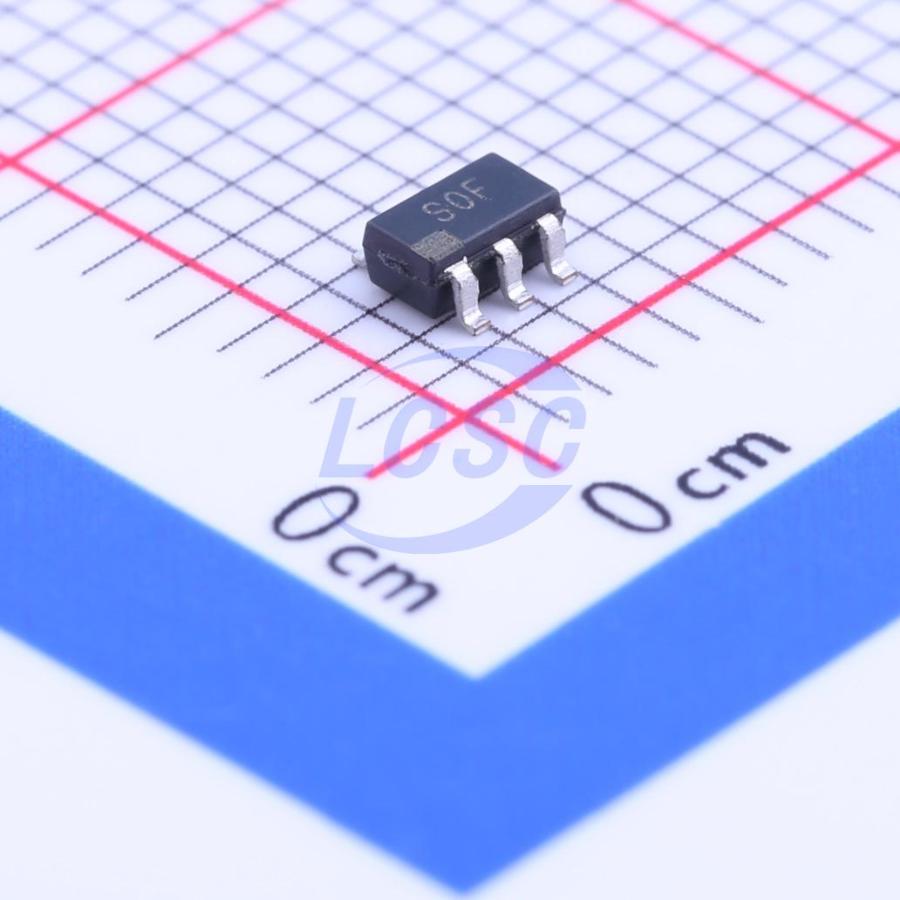

- package
- SOT-23-6
- Pin Count보강
- 8
- Voltage Supply
- 1.8 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-lead MSOP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | D | bidirectional | Drain Terminal. Can be an input or an output. |
| 2 | NC | no connect | No Connect. Do not connect to this pin. |
| 3 | VDD | power in | Most Positive Power Supply Potential. |
| 4 | S | bidirectional | Source Terminal. Can be an input or an output. |
| 5 | NC | no connect | No Connect. Do not connect to this pin. |
| 6 | NC | no connect | No Connect. Do not connect to this pin. |
| 7 | IN | input | Logic Control Input. |
| 8 | GND | power in | Ground (0 V) Reference. |
절대 최대 정격
| VDD to GND | 7V | |
| Analog Inputs | VDD + 0.3V | or 30 mA, whichever occurs first |
| Digital Inputs | VDD + 0.3V | or 30 mA, whichever occurs first |
| Continuous Current, Pin S or Pin D | 400mA | |
| Peak Current, Pin S or Pin D | 800mA | pulsed at 1 ms, 10% duty cycle max |
| Operating Temperature Range | 125°C | Automotive |
| Storage Temperature Range | 150°C |
권장 동작 조건
| Operating Temperature Range | 125°C | Automotive |
열 특성
- unit
- °C/W
- theta ja
- 206
- theta jc
- 44
등급 · 신뢰성
- aec q
- Automotive temperature range
오더링 코드
- 500RL7
