국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(16)
- 3d B Bandwidth
- 300MHz
- con
- 15pF
- Max Supply Voltage보강
- 6V
- Min Supply Voltage보강
- 1.8V
- Number Of Channels
- 1
- ron
- 15Ω
- Operating Supply Voltage보강
- 5.5V
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C

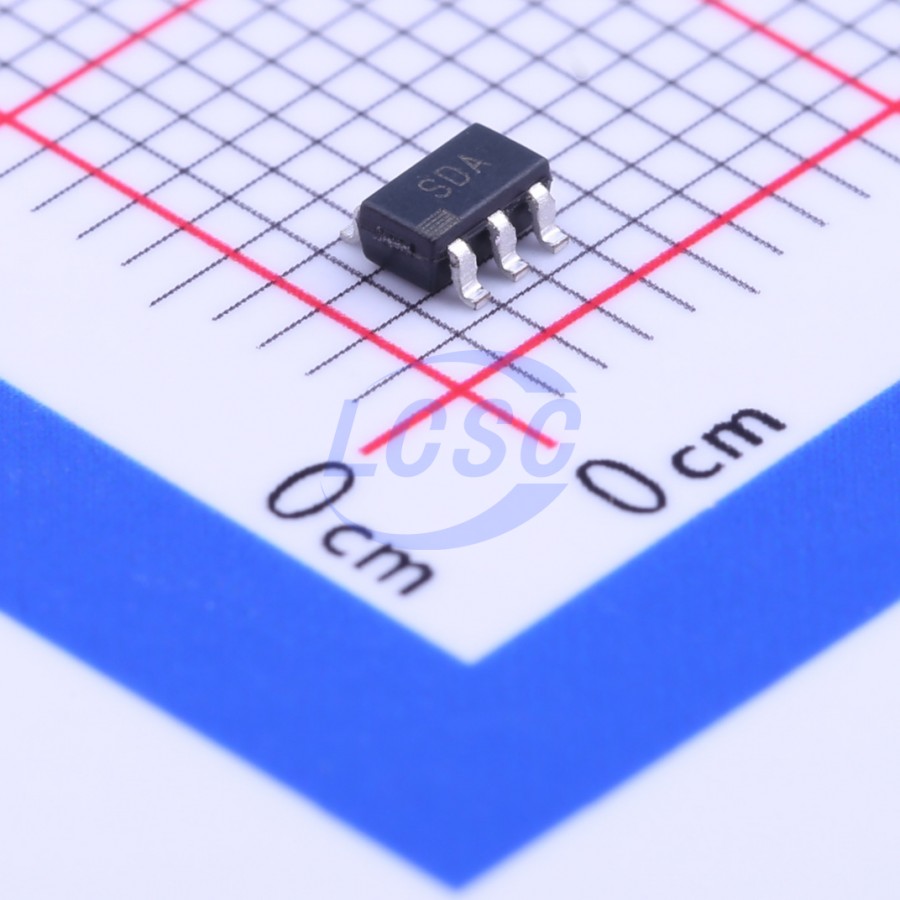

- package
- SOT-23-6
- Pin Count보강
- 6
- Switch Circuit
- 1:1
- Turn Off Time
- 3ns
- Turn On Time
- 9ns
- Voltage Supply
- 1.8 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 6-Lead SOT-23 · 6 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | IN | input | Logic control input |
| 2 | D | bidirectional | Drain terminal |
| 3 | VDD | power in | Most positive power supply potential |
| 4 | S | bidirectional | Source terminal |
| 5 | NC | no connect | No connect |
| 6 | GND | power in | Ground (0 V) reference |
절대 최대 정격
| VDD to GND | -0.3 to +6V | |
| Analog, Digital Inputs | -0.3 to VDD + 0.3 or 30 mA | Whichever occurs first |
| Peak Current, S or D | 100mA | Pulsed at 1 ms, 10% Duty Cycle Max |
| Continuous Current, S or D | 30mA | |
| Operating Temperature Range | -40 to +85°C | Industrial (A, B Versions) |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature (TJ Max) | 150°C |
권장 동작 조건
| Operating Supply Voltage | 1.8 to 5.5V |
열 특성
- unit
- °C/W
- theta ja
- 229.6
- theta jc
- 91.99
오더링 코드
- REEL7
- Tape and Reel
- Z
- RoHS Compliant Part
