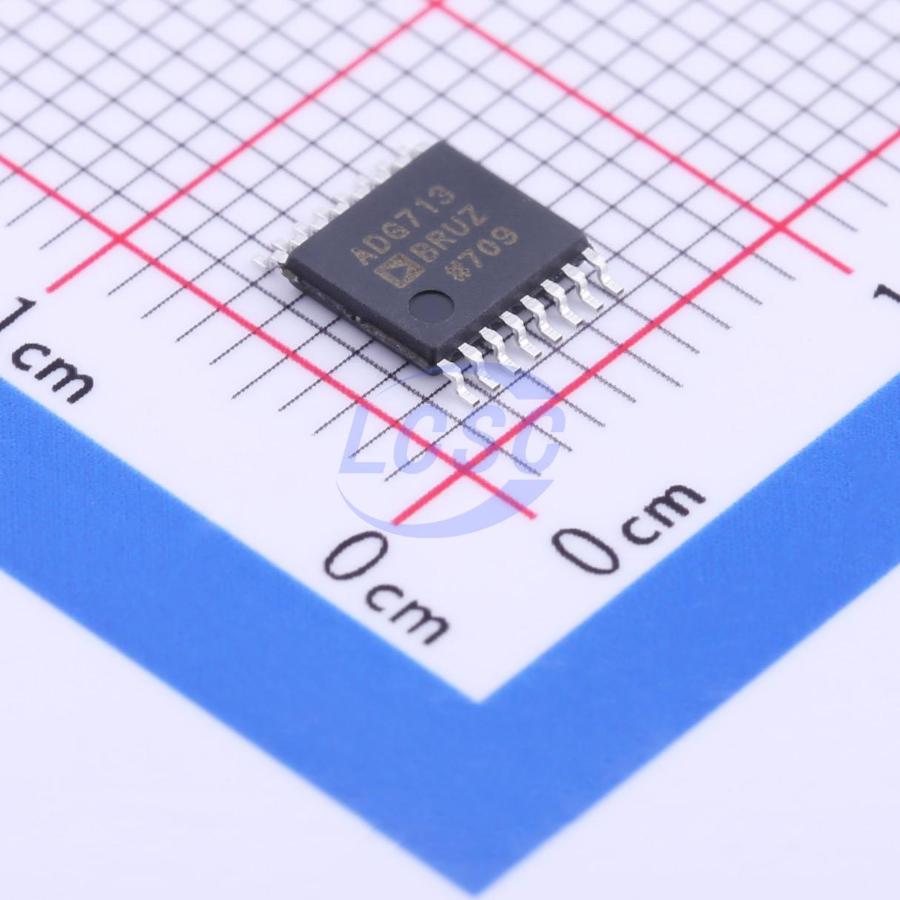

주요 스펙 요약(11)
- con
- 10pF
- Max Supply Voltage보강
- 6V
- Min Supply Voltage보강
- 1.8V
- Number Of Channels
- 4
- ron
- 2.5Ω
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- 1.8 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | IN1 | input | Digital Control Input |
| 2 | D1 | bidirectional | Drain Pin |
| 3 | S1 | bidirectional | Source Pin |
| 4 | NC | no connect | Not internally connected |
| 5 | GND | power in | The most negative power supply pin |
| 6 | S4 | bidirectional | Source Pin |
| 7 | D4 | bidirectional | Drain Pin |
| 8 | IN4 | input | Digital Control Input |
| 9 | IN3 | input | Digital Control Input |
| 10 | D3 | bidirectional | Drain Pin |
| 11 | S3 | bidirectional | Source Pin |
| 12 | NC | no connect | Not internally connected |
| 13 | VDD | power in | The most positive power supply pin |
| 14 | S2 | bidirectional | Source Pin |
| 15 | D2 | bidirectional | Drain Pin |
| 16 | IN2 | input | Digital Control Input |
절대 최대 정격
| VDD to GND | 6V | |
| Analog, Digital Inputs | VDD + 0.3V | |
| Analog, Digital Inputs | 30mA | whichever occurs first |
| Continuous Current, S or D | 30mA | |
| Peak Current, S or D | 100mA | Pulsed at 1 ms, 10% duty cycle maximum |
| Operating Temperature Range | 85°C | min -40 |
| Storage Temperature Range | 150°C | max |
| Junction Temperature | 150°C | |
| TSSOP Package, Power Dissipation | 430mW | |
| ESD | 2kV |
권장 동작 조건
| Supply Voltage | 5.5V | max |
| Supply Voltage | 1.8V | min |
열 특성
- unit ja
- °C/W
- unit jc
- °C/W
- theta ja
- 150
- theta jc
- 27
오더링 코드
- Z
- RoHS Compliant Part
- W
- Qualified for Automotive Applications
