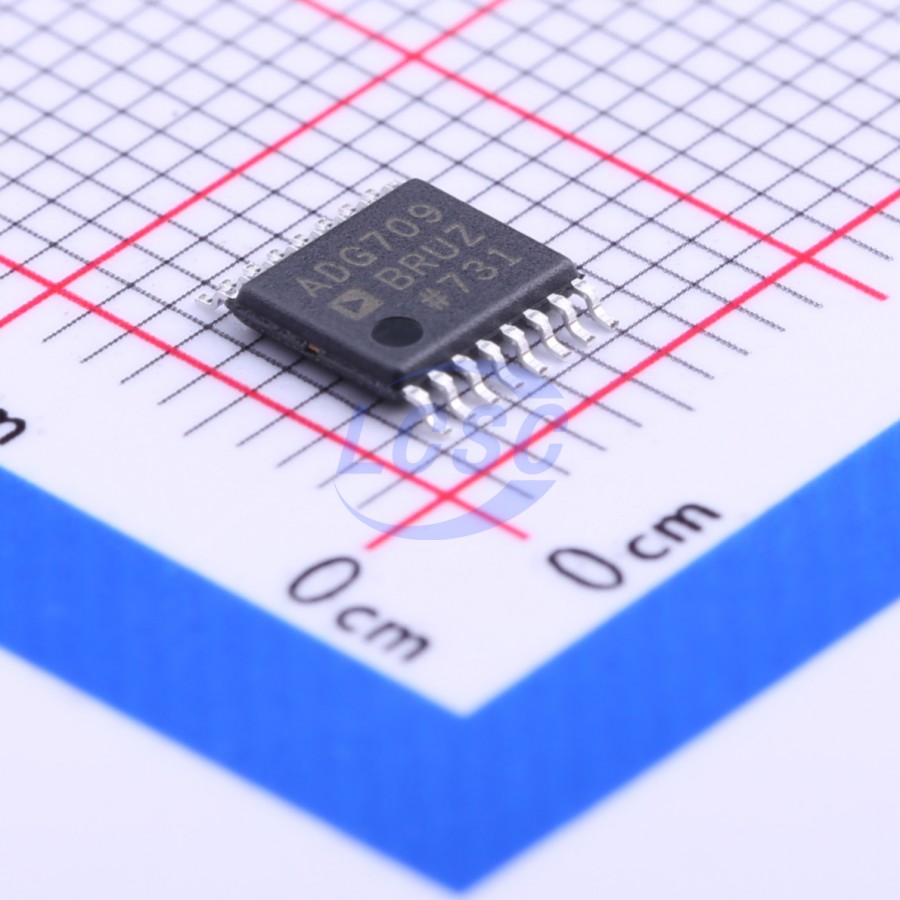

주요 스펙 요약(11)
- con
- 48pF
- Max Supply Voltage보강
- 7V
- Number Of Channels
- 4
- ron
- 3Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Propagation Delay
- 14ns
- Voltage Supply
- 1.8V~5.5V;-2.5V~2.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 16-lead TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | A0 | input | Digital Input. Controls the configuration of the switch |
| 2 | EN | input | Digital Input. Controls the configuration of the switch |
| 3 | VSS | power in | Most Negative Power Supply Pin in Dual-Supply Applications |
| 4 | S1A | bidirectional | Source Terminal. Can be an input or output |
| 5 | S2A | bidirectional | Source Terminal. Can be an input or output |
| 6 | S3A | bidirectional | Source Terminal. Can be an input or output |
| 7 | S4A | bidirectional | Source Terminal. Can be an input or output |
| 8 | DA | bidirectional | Drain Terminal. Can be an input or output |
| 9 | DB | bidirectional | Drain Terminal. Can be an input or output |
| 10 | S4B | bidirectional | Source Terminal. Can be an input or output |
| 11 | S3B | bidirectional | Source Terminal. Can be an input or output |
| 12 | S2B | bidirectional | Source Terminal. Can be an input or output |
| 13 | S1B | bidirectional | Source Terminal. Can be an input or output |
| 14 | VDD | power in | Most Positive Power Supply Pin |
| 15 | GND | power in | Ground (0 V) Reference |
| 16 | A1 | input | Digital Input. Controls the configuration of the switch |
절대 최대 정격
| VDD to VSS | 7V | |
| VDD to GND | -0.3 to +7V | |
| VSS to GND | +0.3 to -3.5V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Digital Inputs | -0.3 to VDD + 0.3 or 30 mA | whichever occurs first |
| Peak Current, S or D | 100mA | Pulsed at 1 ms, 10% Duty Cycle Maximum |
| Continuous Current, S or D | 30mA | |
| Operating Temperature | -40 to +125°C | Industrial Temperature Range |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C | |
| TSSOP Package, Power Dissipation | 432mW |
권장 동작 조건
| Supply Voltage | 1.8 to 5.5V | single supply |
| Supply Voltage | ±2.5V | dual supply |
열 특성
- unit
- °C/W
- theta ja
- 150.4
- theta jc
- 27.6
오더링 코드
- Z
- RoHS Compliant Part
- W
- Qualified for Automotive Applications
