국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

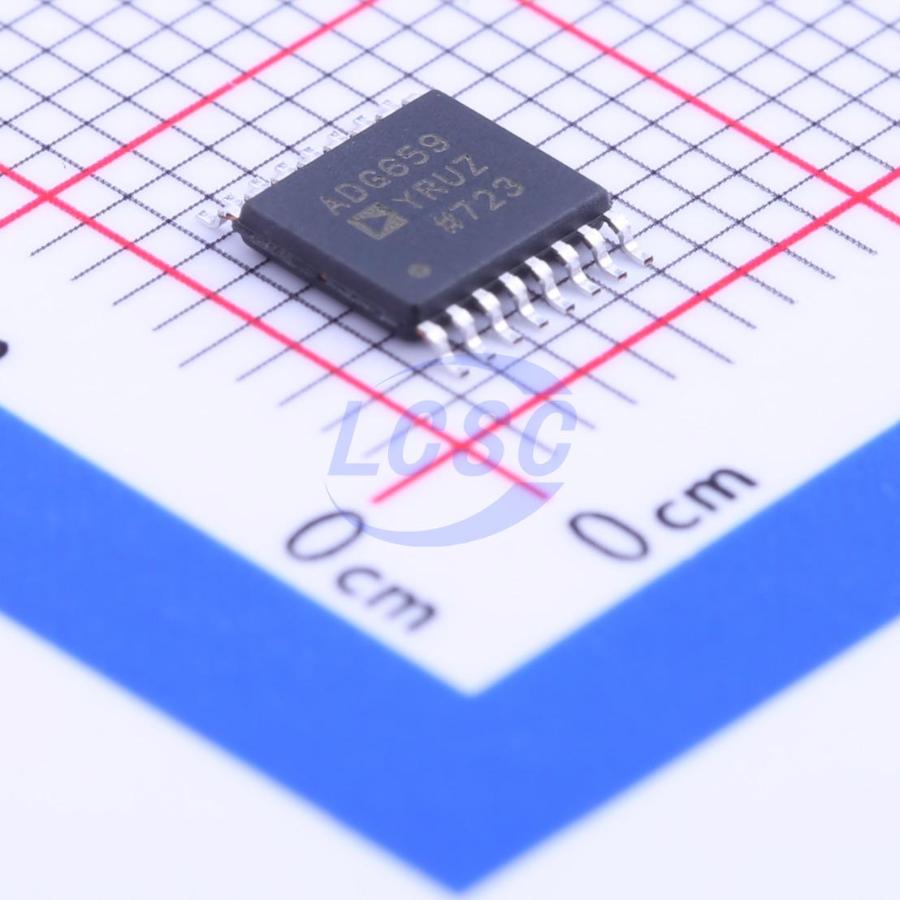

주요 스펙 요약(9)
- con
- 16pF
- Number Of Channels
- -
- ron
- 45Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C
- package
- TSSOP-16
- Pin Count보강
- 16
- Voltage Supply
- -5.5V~-4.5V;4.5V~5.5V;2.7V~3.6V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 16-Lead TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VDD | power in | Most Positive Power Supply Potential |
| 2 | S3A | bidirectional | Source Terminal |
| 3 | S2A | bidirectional | Source Terminal |
| 4 | DA | bidirectional | Drain Terminal |
| 5 | S1A | bidirectional | Source Terminal |
| 6 | S4A | bidirectional | Source Terminal |
| 7 | A0 | input | Logic Control Input |
| 8 | A1 | input | Logic Control Input |
| 9 | S1B | bidirectional | Source Terminal |
| 10 | S3B | bidirectional | Source Terminal |
| 11 | DB | bidirectional | Drain Terminal |
| 12 | S4B | bidirectional | Source Terminal |
| 13 | S2B | bidirectional | Source Terminal |
| 14 | VSS | power in | Most Negative Power Supply Potential |
| 15 | GND | power in | Ground (0 V) Reference |
| 16 | EN | input | Active Low Digital Input |
절대 최대 정격
| VDD to VSS | 13V | |
| VDD to GND | -0.3 to 13V | |
| VSS to GND | +0.3 to -6.5V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3V | |
| Digital Inputs | GND - 0.3 to VDD + 0.3V | or 10 mA, whichever occurs first |
| Peak Current, S or D | 40mA | Pulsed at 1 ms, 10% duty cycle max |
| Continuous Current, S or D | 20mA | |
| Operating Temperature Range (Automotive) | -40 to 125°C | |
| Storage Temperature Range | -65 to 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | Automotive (Y Version) |
열 특성
- theta ja
- 150.4
등급 · 신뢰성
- aec q
- Qualified for Automotive Applications (W suffix)
- esd hbm
- 5.5
오더링 코드
- Z
- RoHS Compliant Part
- W
- Qualified for Automotive Applications
