주요 스펙 요약(9)
- con
- 28pF
- ron
- 90Ω
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C

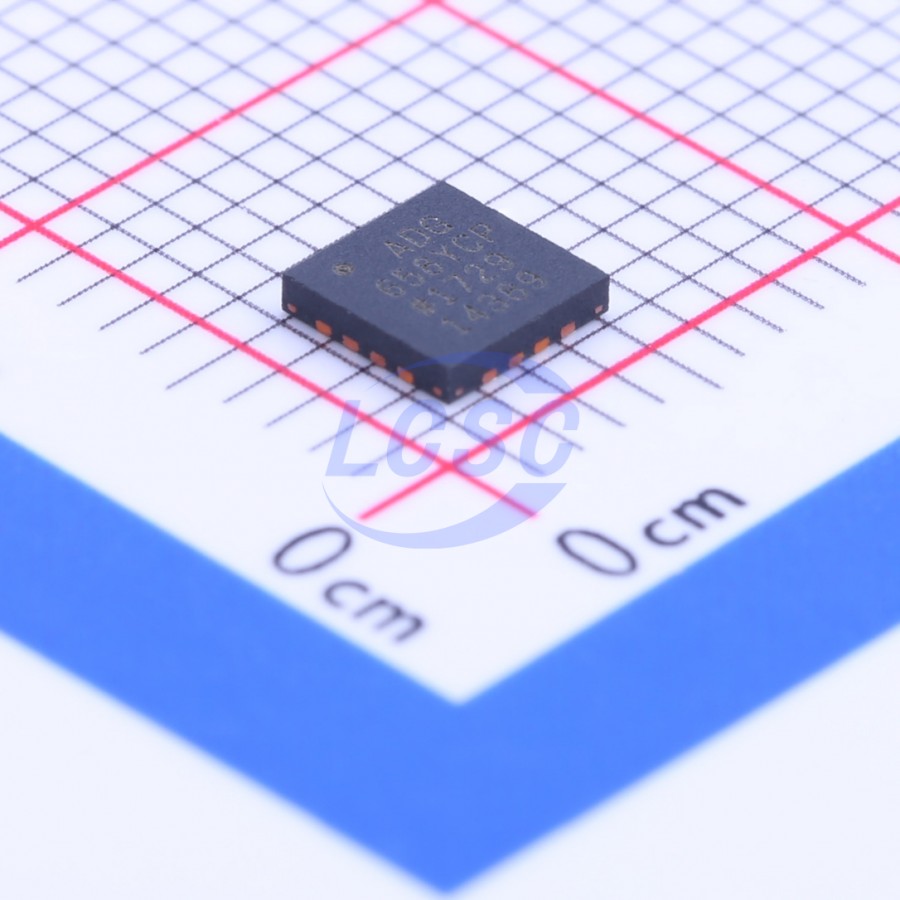

- package
- LFCSP-16(4x4)
- Pin Count보강
- 16
- Propagation Delay
- 165ns
- Voltage Supply
- 2.7V~5.5V;2V~6V;-6V~-2V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VDD | power in | Most Positive Power Supply Potential |
| 2 | S3A | bidirectional | Source Terminal |
| 3 | S2A | bidirectional | Source Terminal |
| 4 | DA | bidirectional | Drain Terminal |
| 5 | S1A | bidirectional | Source Terminal |
| 6 | S4A | bidirectional | Source Terminal |
| 7 | A0 | input | Logic Control Input |
| 8 | A1 | input | Logic Control Input |
| 9 | EN | input | Active Low Digital Input |
| 10 | VSS | power in | Most Negative Power Supply Potential |
| 11 | S1B | bidirectional | Source Terminal |
| 12 | S3B | bidirectional | Source Terminal |
| 13 | DB | bidirectional | Drain Terminal |
| 14 | S4B | bidirectional | Source Terminal |
| 15 | S2B | bidirectional | Source Terminal |
| 16 | GND | power in | Ground (0 V) Reference |
절대 최대 정격
| VDD to VSS | 13V | |
| VDD to GND | -0.3 to +13V | |
| VSS to GND | +0.3 to -6.5V | |
| Analog Inputs | VSS - 0.3 to VDD + 0.3V | |
| Digital Inputs | GND - 0.3 to VDD + 0.3V | |
| Peak Current, S or D | 40mA | Pulsed at 1 ms, 10% duty cycle max |
| Continuous Current, S or D | 20mA | |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C | |
| ESD | 5.5kV |
권장 동작 조건
| Operating Temperature Range | -40 to +85°C | Industrial/Commercial |
열 특성
- theta ja
- 70
오더링 코드
- YCPZ
- LFCSP package, -40°C to +85°C
- YCPZ-REEL7
- LFCSP package, -40°C to +85°C, Tape and Reel
