국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(10)
- Max Supply Voltage보강
- 13V
- Number Of Channels
- 8
- ron
- 30Ω
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C

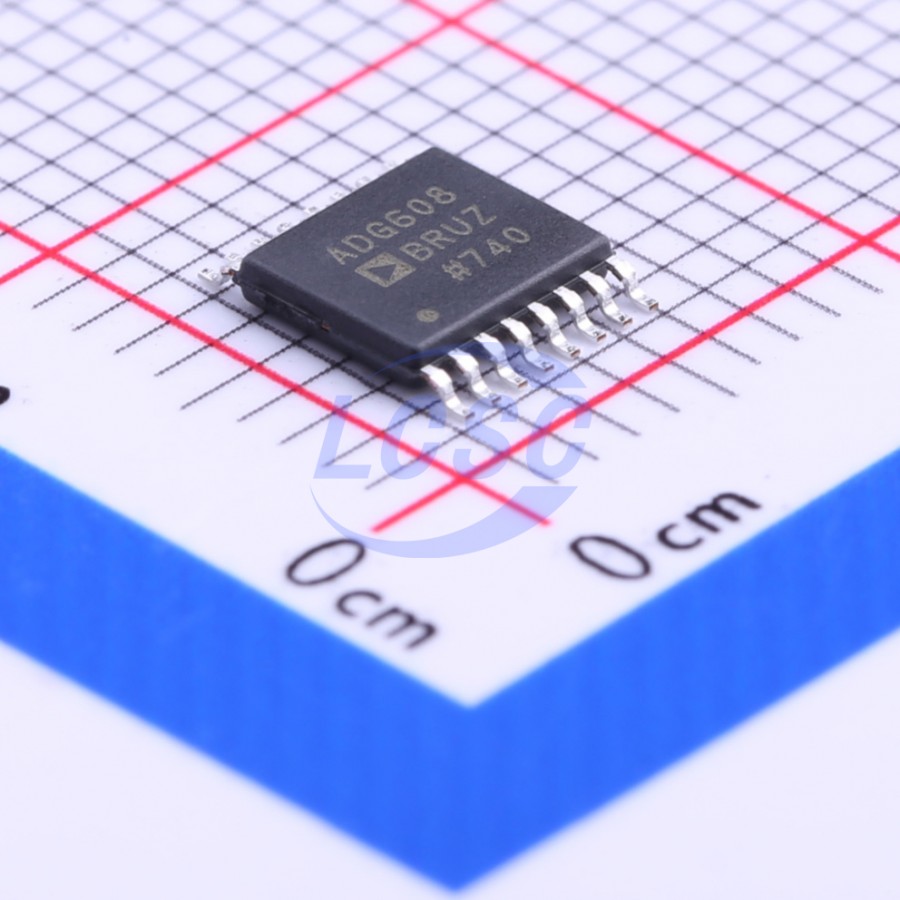

- package
- TSSOP-16
- Pin Count보강
- 16
- Propagation Delay
- 75ns
- Voltage Supply
- 3V~5V;-5V~5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | A0 | input | Address bit 0 |
| 2 | EN | input | Enable |
| 3 | A1 | input | Address bit 1 |
| 4 | GND | power in | Ground |
| 5 | S2A | bidirectional | Switch 2A |
| 6 | S3A | bidirectional | Switch 3A |
| 7 | S4A | bidirectional | Switch 4A |
| 8 | S2B | bidirectional | Switch 2B |
| 9 | S3B | bidirectional | Switch 3B |
| 10 | S4B | bidirectional | Switch 4B |
| 11 | VSS | power in | Negative Supply |
| 12 | S1A | bidirectional | Switch 1A |
| 13 | VDD | power in | Positive Supply |
| 14 | S1B | bidirectional | Switch 1B |
| 15 | DA | output | Common Output |
| 16 | DB | output | Common Output |
절대 최대 정격
| VDD to VSS | 13V | |
| VDD to GND | -0.3 to 6.5V | |
| VSS to GND | 0.3 to -6.5V | |
| Analog, Digital Inputs | -0.3 to VDD + 2V | or 20 mA, whichever occurs first |
| Continuous Current, S or D | 20mA | |
| Peak Current, S or D | 40mA | Pulsed at 1 ms, 10% Duty Cycle Max |
| Storage Temperature Range | -65 to 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range (B Version) | -40 to 85°C |
열 특성
- theta ja
- 158
등급 · 신뢰성
- esd hbm
- >5000
오더링 코드
- REEL7
- Tape and Reel (implied by part number suffix convention, though not explicitly in table)
