주요 스펙 요약(9)
- Max Supply Voltage보강
- 48V
- Number Of Channels
- 1
- ron
- 6.5Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

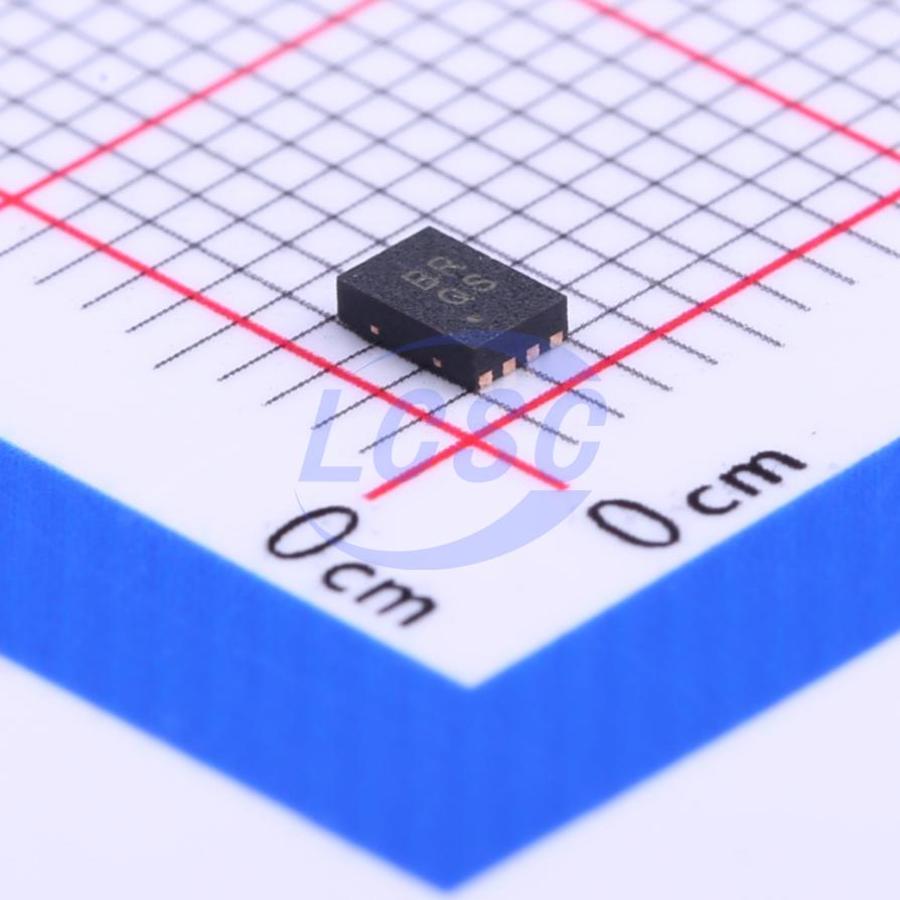

- package
- LFCSP-8(2x3)
- Pin Count보강
- 8
- Voltage Supply
- 9V~40V;-22V~-9V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 8-Lead LFCSP · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | S | bidirectional | Source Terminal. This pin can be an input or output. |
| 2 | NC | no connect | No Connect. Not internally connected. |
| 3 | GND | power in | Ground (0 V) Reference. |
| 4 | VDD | power in | Most Positive Power Supply Potential. |
| 5 | NC | no connect | No Connect. Not internally connected. |
| 6 | IN | input | Logic Control Input. |
| 7 | VSS | power in | Most Negative Power Supply Potential. |
| 8 | D | bidirectional | Drain Terminal. This pin can be an input or output. |
절대 최대 정격
| VDD to VSS | 48V | |
| VDD to GND | -0.3 to 48V | |
| VSS to GND | +0.3 to -48V | |
| Analog Inputs | 30mA | VSS - 0.3 V to VDD + 0.3 V |
| Digital Inputs | 30mA | VSS - 0.3 V to VDD + 0.3 V |
| Peak Current, S or D Pin | 630mA | pulsed at 1 ms, 10% duty cycle maximum |
| Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature | -40 to 125°C | |
| Single-Supply Operation | 9 to 40V | |
| Dual-Supply Operation | ±9 to ±22V |
열 특성
- theta ja
- 60.88
등급 · 신뢰성
- esd hbm
- 8
오더링 코드
- -RL7
- Tape and Reel
