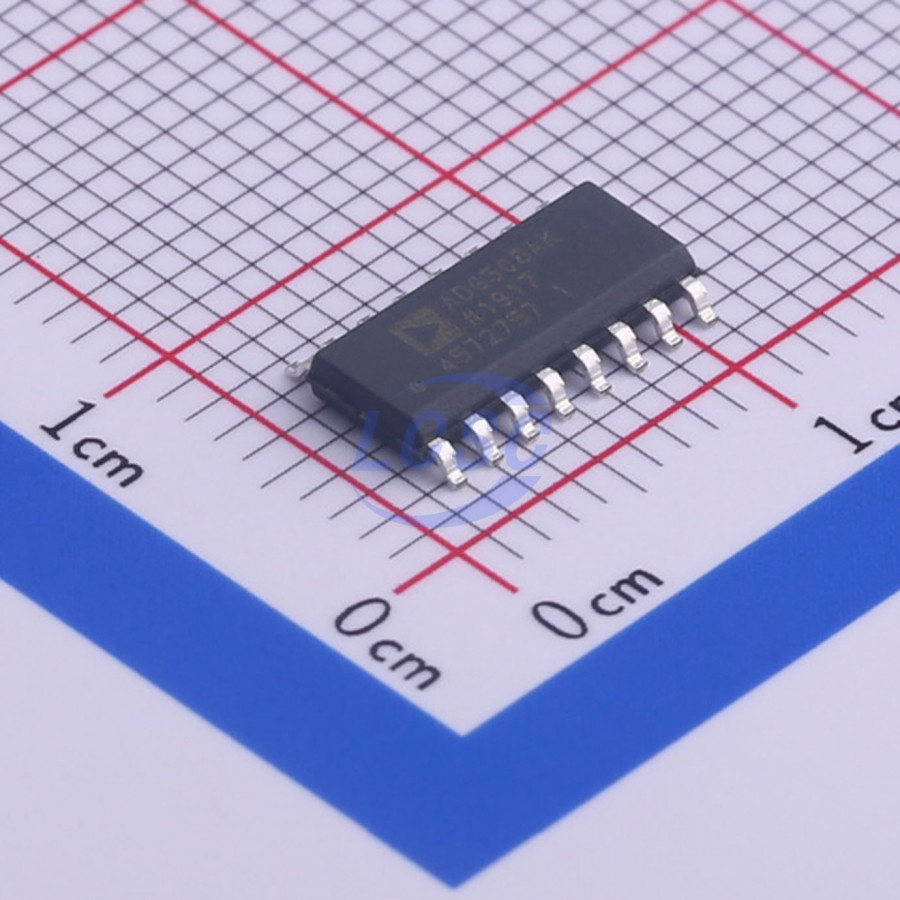

국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(11)
- Max Supply Voltage보강
- 44V
- Min Supply Voltage보강
- 10.8V
- Number Of Channels
- 8
- ron
- 280Ω
- Operating Supply Voltage보강
- 16.5V
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- SOIC-16
- Pin Count보강
- 16
- Voltage Supply
- -16.5V~-10.8V;10.8V~16.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOIC_N · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | A0 | input | Logic Control Input |
| 2 | EN | input | Active High Digital Input |
| 3 | VSS | power in | Most Negative Power Supply Potential |
| 4 | S1 | bidirectional | Source Terminal 1 |
| 5 | S2 | bidirectional | Source Terminal 2 |
| 6 | S3 | bidirectional | Source Terminal 3 |
| 7 | S4 | bidirectional | Source Terminal 4 |
| 8 | D | bidirectional | Drain Terminal |
| 9 | S8 | bidirectional | Source Terminal 8 |
| 10 | S7 | bidirectional | Source Terminal 7 |
| 11 | S6 | bidirectional | Source Terminal 6 |
| 12 | S5 | bidirectional | Source Terminal 5 |
| 13 | VDD | power in | Most Positive Power Supply Potential |
| 14 | GND | power in | Ground (0 V) Reference |
| 15 | A2 | input | Logic Control Input |
| 16 | A1 | input | Logic Control Input |
절대 최대 정격
| VDD to VSS | 44V | |
| VDD to GND | 32V | |
| VSS to GND | -32V | |
| Analog Input Voltage at S, D | VSS - 2 V to VDD + 2 V | or 20 mA, whichever occurs first |
| Continuous Current, S or D | 20mA | |
| Pulsed Current S or D | 40mA | 1 ms Duration, 10% Duty Cycle |
| Digital Input Voltage at A, EN | VSS - 4 V to VDD + 4 V | or 20 mA, whichever occurs first |
| Power Dissipation | 470mW | Up to 75°C |
권장 동작 조건
| Operating Temperature | -40 to 85°C | K Version |
오더링 코드
- REEL7
- Tape and Reel
- Z
- RoHS Compliant Part
