수집 데이터Interface ICs

Analog Devices

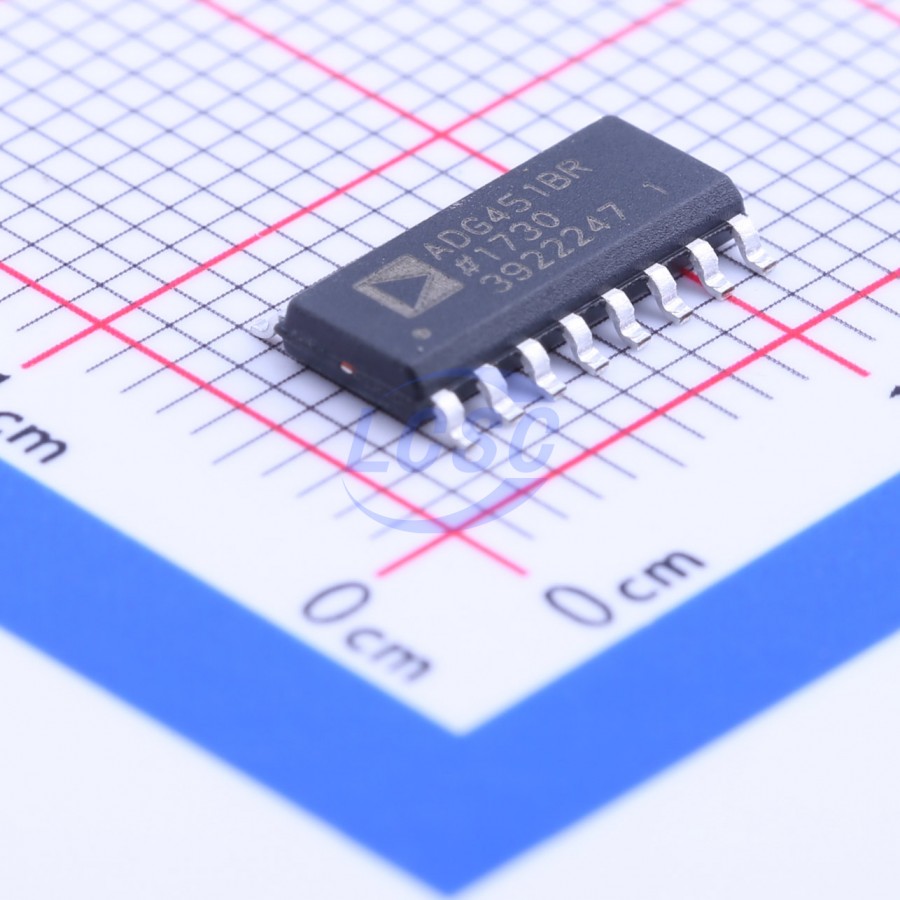

ADG451BRZ

interface

PDF 데이터시트제조사 웹사이트

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(10)

con: 140pF
Max Supply Voltage보강: 44V
Number Of Channels: 4
ron: 4Ω
Operating Temperature: -40℃~+85℃
Operating Temperature Max보강: 85°C
Operating Temperature Min보강: -40°C
package: SOIC-16
Pin Count보강: 16
Voltage Supply: 5V~12V;-20V~-4.5V;4.5V~20V

데이터시트 추출 정보

데이터시트에서 직접 추출한 사실 (출처 명시)

핀 배치 · SOIC_N · 16 핀

#	Name	Type	Function
1	IN1	input	Logic Control Input
2	D1	bidirectional	Drain Terminal. Can be an input or an output.
3	S1	bidirectional	Source Terminal. Can be an input or an output.
4	VSS	power in	Most Negative Power Supply Potential in Dual Supplies. In single-supply applications, it can be connected to GND.
5	GND	power in	Ground (0 V) Reference.
6	S4	bidirectional	Source Terminal. Can be an input or an output.
7	D4	bidirectional	Drain Terminal. Can be an input or an output.
8	IN4	input	Logic Control Input
9	IN3	input	Logic Control Input
10	D3	bidirectional	Drain Terminal. Can be an input or an output.
11	S3	bidirectional	Source Terminal. Can be an input or an output.
12	VL	power in	Logic Power Supply (5 V)
13	VDD	power in	Most Positive Power Supply Potential.
14	S2	bidirectional	Source Terminal. Can be an input or an output.
15	D2	bidirectional	Drain Terminal. Can be an input or an output.
16	IN2	input	Logic Control Input

절대 최대 정격

VDD to VSS	44V
VDD to GND	-0.3 to +32V
VSS to GND	+0.3 to -32V
VL to GND	-0.3 to VDD + 0.3V
Analog, Digital Inputs	VSS - 2 V to VDD + 2 V or 30 mA	whichever occurs first
Continuous Current, S or D	100mA
Peak Current, S or D	300mA	pulsed at 1 ms, 10% duty cycle maximum
Operating Temperature Range	-40 to +85°C	Industrial (B Version)
Storage Temperature Range	-65 to +150°C
Junction Temperature	150°C
Power Dissipation (SOIC)	600mW
ESD	2kV

권장 동작 조건

Operating Temperature Range

-40 to +85°C

Industrial (B Version)

열 특성

theta ja: 77

오더링 코드

Z: Pb-free part
