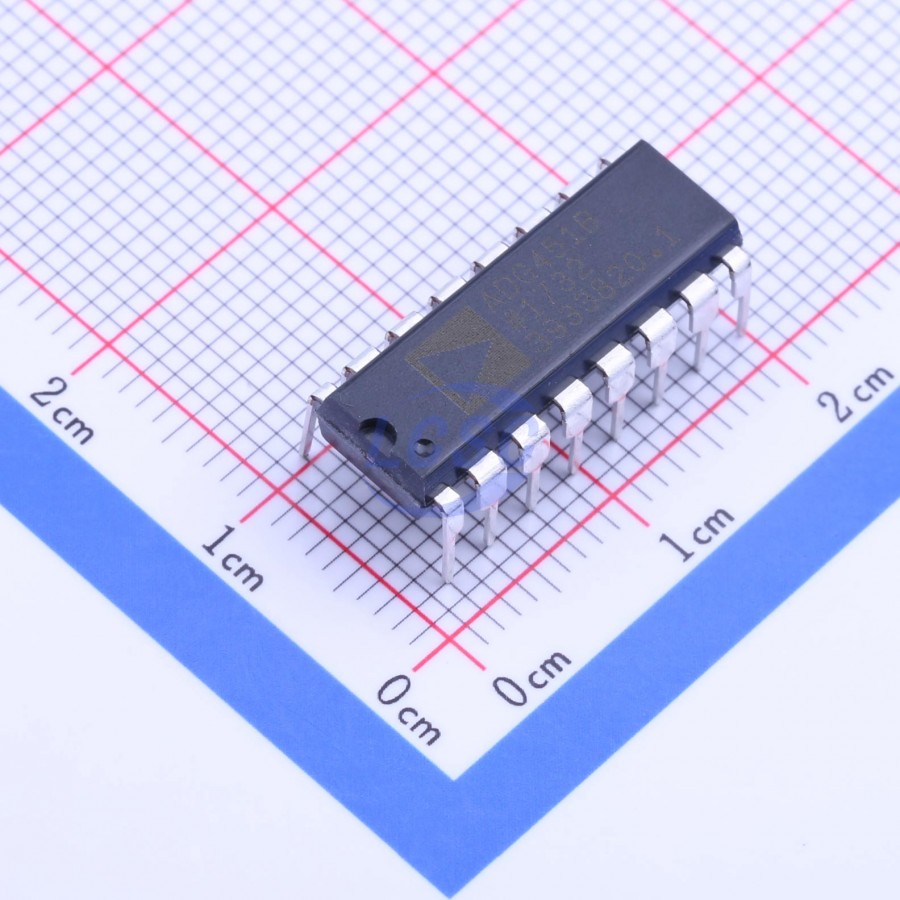

주요 스펙 요약(9)
- Max Supply Voltage보강
- 44V
- Number Of Channels
- 4
- ron
- 4Ω
- Operating Temperature
- -40℃~+85℃
- Operating Temperature Max보강
- 85°C
- Operating Temperature Min보강
- -40°C
- package
- PDIP-16
- Pin Count보강
- 16
- Voltage Supply
- 12V;5V;-5V~5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · PDIP · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | IN1 | input | Logic Control Input |
| 2 | D1 | bidirectional | Drain Terminal. Can be an input or an output. |
| 3 | S1 | bidirectional | Source Terminal. Can be an input or an output. |
| 4 | VSS | power in | Most Negative Power Supply Potential in Dual Supplies. In single-supply applications, it can be connected to GND. |
| 5 | GND | power in | Ground (0 V) Reference. |
| 6 | S4 | bidirectional | Source Terminal. Can be an input or an output. |
| 7 | D4 | bidirectional | Drain Terminal. Can be an input or an output. |
| 8 | IN4 | input | Logic Control Input. |
| 9 | IN3 | input | Logic Control Input. |
| 10 | D3 | bidirectional | Drain Terminal. Can be an input or an output. |
| 11 | S3 | bidirectional | Source Terminal. Can be an input or an output. |
| 12 | VL | power in | Logic Power Supply (5 V). |
| 13 | VDD | power in | Most Positive Power Supply Potential. |
| 14 | S2 | bidirectional | Source Terminal. Can be an input or an output. |
| 15 | D2 | bidirectional | Drain Terminal. Can be an input or an output. |
| 16 | IN2 | input | Logic Control Input. |
절대 최대 정격
| VDD to VSS | 44V | |
| VDD to GND | -0.3 to +32V | |
| VSS to GND | +0.3 to -32V | |
| VL to GND | -0.3 to VDD + 0.3V | |
| Analog, Digital Inputs | VSS - 2 to VDD + 2 or 30V/mA | whichever occurs first |
| Continuous Current, S or D | 100mA | |
| Peak Current, S or D | 300mA | pulsed at 1 ms, 10% duty cycle maximum |
| Operating Temperature Range | -40 to +85°C | Industrial (B Version) |
| Storage Temperature Range | -65 to +150°C | |
| Junction Temperature | 150°C | |
| Power Dissipation (PDIP) | 470mW | |
| Power Dissipation (SOIC) | 600mW | |
| Power Dissipation (TSSOP) | 450mW |
권장 동작 조건
| Operating Temperature Range | -40 to +85°C |
열 특성
- theta ja
- 117°C/W (PDIP), 77°C/W (SOIC), 115°C/W (TSSOP)
- theta jc
- 35°C/W (TSSOP)
등급 · 신뢰성
- esd hbm
- 2 kV
오더링 코드
- BNZ1
- Pb-free part, 16-Lead PDIP
