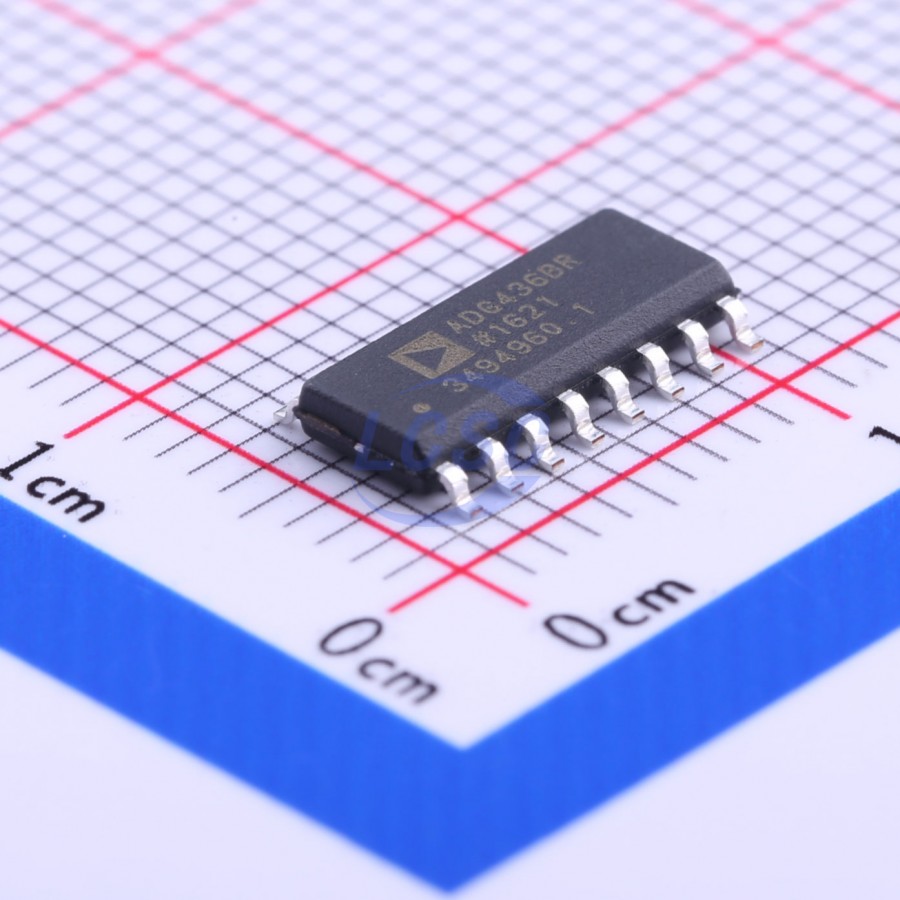

주요 스펙 요약(5)
- Number Of Channels
- 2
- ron
- 12Ω
- Operating Temperature
- -40℃~+85℃
- package
- SOIC-16
- Voltage Supply
- 3V~20V;-20V~-3V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOIC · 16 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | IN1 | input | Logic Control Input |
| 2 | S1A | bidirectional | Source Terminal |
| 3 | D1 | bidirectional | Drain Terminal |
| 4 | S1B | bidirectional | Source Terminal |
| 5 | VSS | power in | Most Negative Power Supply Potential |
| 6 | GND | power in | Ground (0 V) Reference |
| 7 | S2A | bidirectional | Source Terminal |
| 8 | IN2 | input | Logic Control Input |
| 9 | S2B | bidirectional | Source Terminal |
| 10 | D2 | bidirectional | Drain Terminal |
| 11 | NC | no connect | No Connect |
| 12 | NC | no connect | No Connect |
| 13 | VDD | power in | Most Positive Power Supply Potential |
| 14 | VSS | power in | Most Negative Power Supply Potential |
| 15 | NC | no connect | No Connect |
| 16 | NC | no connect | No Connect |
절대 최대 정격
| VDD to VSS | 44V | |
| VDD to GND | -0.3V | |
| VDD to GND | 30V | |
| VSS to GND | 0.3V | |
| VSS to GND | -30V | |
| Analog, Digital Inputs | VSS - 2V | or 20 mA, whichever occurs first |
| Continuous Current, S or D | 20mA | |
| Peak Current, S or D | 40mA | pulsed at 1 ms, 10% Duty Cycle max |
권장 동작 조건
| Operating Temperature Range | -40°C | Industrial (B Version) |
| Operating Temperature Range | 85°C | Industrial (B Version) |
열 특성
- theta ja
- 77
오더링 코드
- REEL
- 16-Lead 0.15" Narrow Body SOIC
