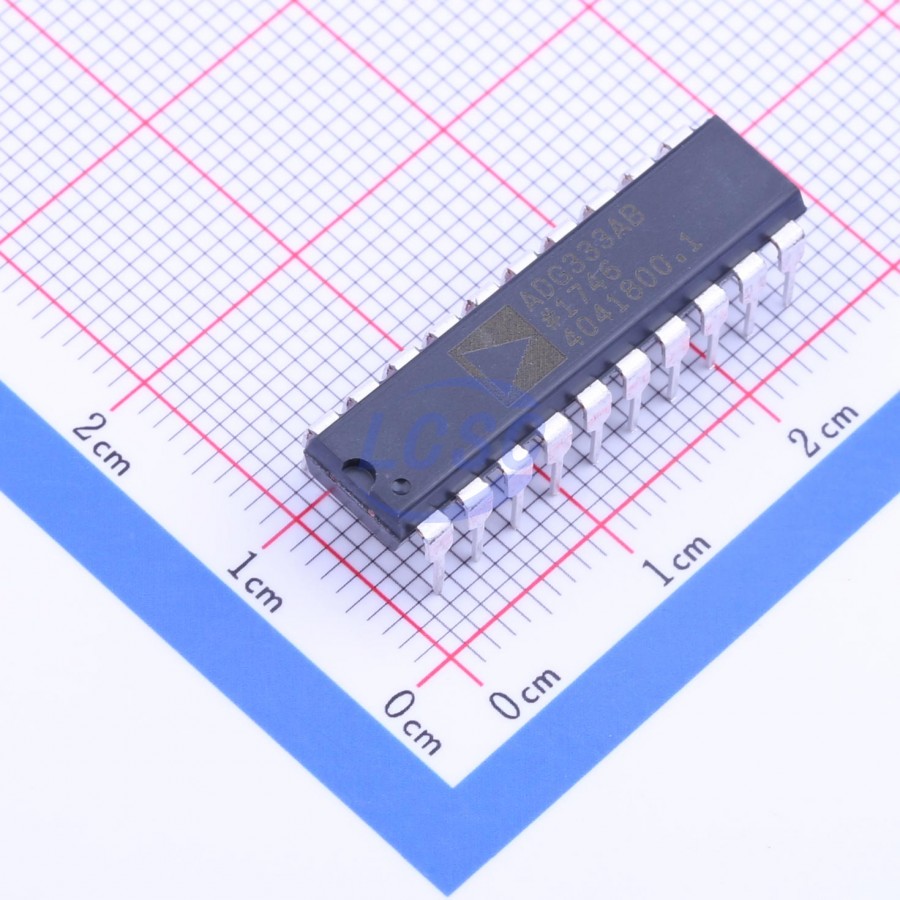

ADG333ABNZ

interface

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(9)

데이터시트에서 직접 추출한 사실 (출처 명시)

#	Name	Type	Function
1	IN1	input	Logic Control Input
2	S1A	bidirectional	Source Terminal
3	D1	bidirectional	Drain Terminal
4	S1B	bidirectional	Source Terminal
5	VSS	power in	Most Negative Power Supply Potential
6	GND	power in	Ground (0 V) Reference
7	S2B	bidirectional	Source Terminal
8	D2	bidirectional	Drain Terminal
9	S2A	bidirectional	Source Terminal
10	IN2	input	Logic Control Input
11	IN3	input	Logic Control Input
12	S3A	bidirectional	Source Terminal
13	D3	bidirectional	Drain Terminal
14	S3B	bidirectional	Source Terminal
15	NC	no connect	No Connect
16	VDD	power in	Most Positive Power Supply Potential
17	S4B	bidirectional	Source Terminal
18	D4	bidirectional	Drain Terminal
19	S4A	bidirectional	Source Terminal
20	IN4	input	Logic Control Input

VDD to VSS	44V
VDD to GND	30V
VSS to GND	30V
Analog, Digital Inputs	2V	VSS - 2 V to VDD + 2 V or 20 mA
Continuous Current, S or D	20mA
Peak Current, S or D	40mA	Pulsed at 1 ms, 10% Duty Cycle Max
Operating Temperature Range	85°C	Industrial (B Version) -40 to +85
Storage Temperature Range	125°C	-65 to +125
Junction Temperature	150°C

Operating Temperature Range

85°C

-40 to +85
