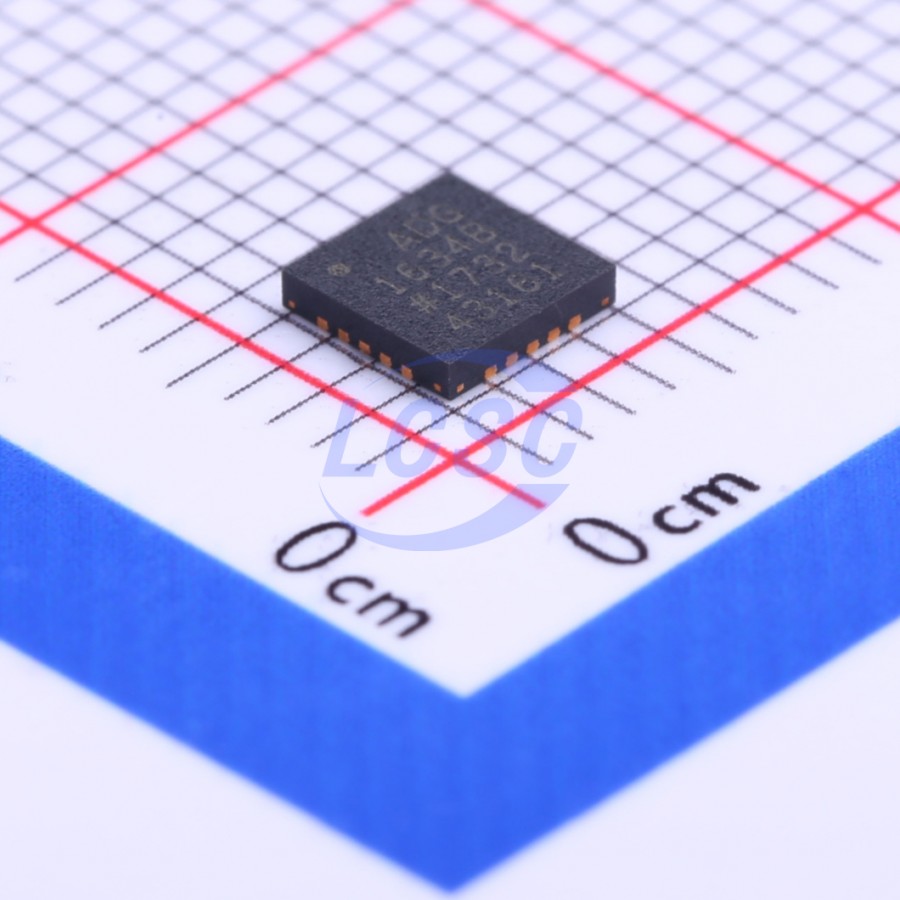

ADG1634BCPZ-REEL7

interface

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(9)

데이터시트에서 직접 추출한 사실 (출처 명시)

#	Name	Type	Function
1	IN1	input	Logic Control Input 1
2	S1A	bidirectional	Source Terminal 1A. Can be an input or an output.
3	D1	bidirectional	Drain Terminal 1. Can be an input or an output.
4	S1B	bidirectional	Source Terminal 1B. Can be an input or an output.
5	VSS	power in	Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground.
6	GND	power in	Ground (0 V) Reference.
7	S2B	bidirectional	Source Terminal 2B. Can be an input or an output.
8	D2	bidirectional	Drain Terminal 2. Can be an input or an output.
9	S2A	bidirectional	Source Terminal 2A. Can be an input or an output.
10	IN2	input	Logic Control Input 2.
11	IN3	input	Logic Control Input 3.
12	S3A	bidirectional	Source Terminal 3A. Can be an input or an output.
13	D3	bidirectional	Drain Terminal 3. Can be an input or an output.
14	S3B	bidirectional	Source Terminal 3B. Can be an input or an output.
15	NC	no connect	No Connect.
16	VDD	power in	Most Positive Power Supply Potential.
17	S4B	bidirectional	Source Terminal 4B. Can be an input or an output.
18	D4	bidirectional	Drain Terminal 4. Can be an input or an output.
19	S4A	bidirectional	Source Terminal 4A. Can be an input or an output.
20	IN4	input	Logic Control Input 4.
N/A	EN	input	Active Low Digital Input. When this pin is high, the device is disabled and all switches are off. When this pin is low,
N/A	EP	power in	Exposed Pad. The exposed pad is tied to the substrate, VSS.

VDD to VSS	18V
VDD to GND	-0.3 to +18V
VSS to GND	+0.3 to -18V
Analog Inputs	VSS - 0.3 to VDD + 0.3 or 30 mA	whichever occurs first
Digital Inputs	GND - 0.3 to VDD + 0.3 or 30 mA	whichever occurs first
Peak Current, S or D	450mA	pulsed at 1 ms, 10% duty cycle maximum
Continuous Current, S or D	206mA
Operating Temperature Range	-40 to +125°C	Industrial (Y Version)
Storage Temperature Range	-65 to +150°C
Junction Temperature	150°C

Operating Temperature Range

-40 to +125°C
