국내 재고 없음
이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.
주요 스펙 요약(8)
- Number Of Channels
- 3
- ron
- 4.5Ω
- Operating Temperature
- -40℃~+125℃
- Operating Temperature Max보강
- 125°C
- Operating Temperature Min보강
- -40°C

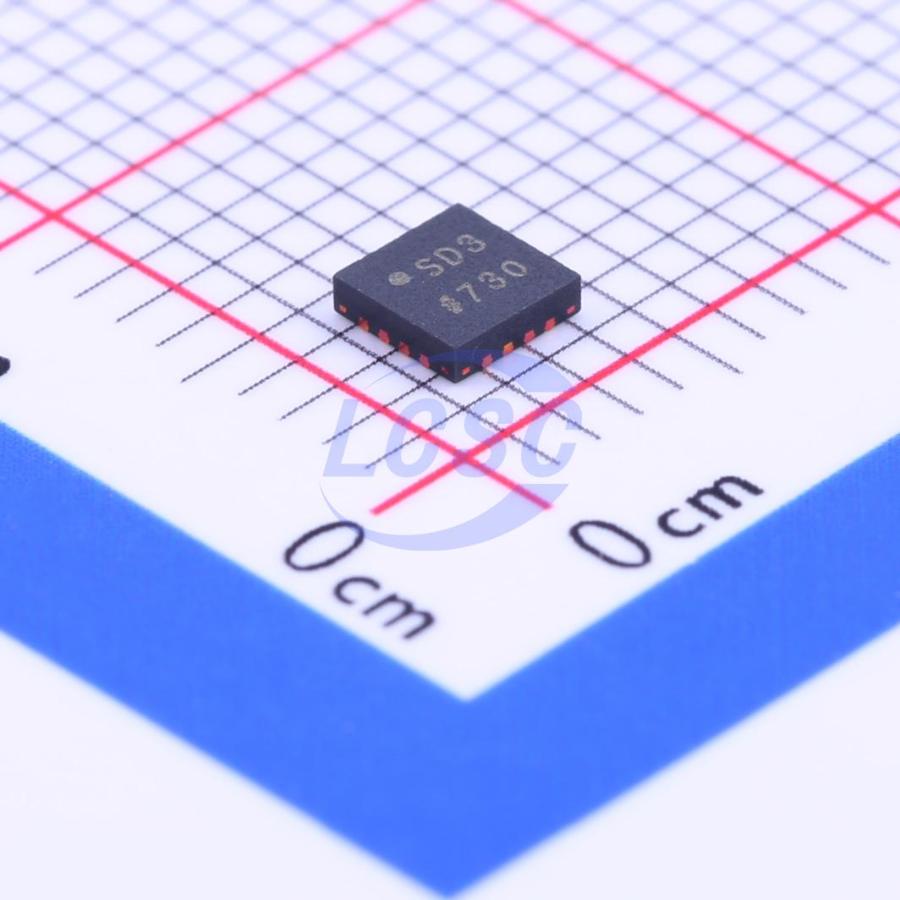

- package
- LFCSP-16(3x3)
- Pin Count보강
- 16
- Voltage Supply
- -5V~5V;3.3V~16V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · LFCSP · 17 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | VDD | power in | Most Positive Power Supply Potential. |
| 2 | S1A | bidirectional | Source Terminal 1A. Can be an input or an output. |
| 3 | D1 | bidirectional | Drain Terminal 1. Can be an input or an output. |
| 4 | S1B | bidirectional | Source Terminal 1B. Can be an input or an output. |
| 5 | S2B | bidirectional | Source Terminal 2B. Can be an input or an output. |
| 6 | D2 | bidirectional | Drain Terminal 2. Can be an input or an output. |
| 7 | S2A | bidirectional | Source Terminal 2A. Can be an input or an output. |
| 8 | IN2 | input | Logic Control Input 2. |
| 9 | IN3 | input | Logic Control Input 3. |
| 10 | S3A | bidirectional | Source Terminal 3A. Can be an input or an output. |
| 11 | D3 | bidirectional | Drain Terminal 3. Can be an input or an output. |
| 12 | S3B | bidirectional | Source Terminal 3B. Can be an input or an output. |
| 13 | VSS | power in | Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground. |
| 14 | EN | input | Active Low Digital Input. When this pin is high, the device is disabled and all switches are off. When this pin is low, |
| 15 | IN1 | input | Logic Control Input 1. |
| 16 | GND | power in | Ground (0 V) Reference. |
| 17 | EP | power in | Exposed Pad. The exposed pad is tied to the substrate, VSS. |
절대 최대 정격
| VDD to VSS | 18V | |
| VDD to GND | -0.3 to 18V | |
| VSS to GND | 0.3 to -18V | |
| Analog Inputs | 30mA | VSS - 0.3 V to VDD + 0.3 V |
| Digital Inputs | 30mA | GND - 0.3 V to VDD + 0.3 V |
| Peak Current, S or D | 450mA | pulsed at 1 ms, 10% duty cycle maximum |
| Operating Temperature Range | -40 to 125°C | Industrial (Y Version) |
| Storage Temperature Range | -65 to 150°C | |
| Junction Temperature | 150°C |
권장 동작 조건
| Continuous Current per Channel, S or D | 206mA |
열 특성
- theta ja
- 48.7
오더링 코드
- -REEL7
- Tape and Reel
